Continuously Automatic PU Sandwich Panel Production Line Two Tanks

Continuously Automatic PU Sandwich Panel Production Line Two Tanks

  • Continuously Automatic PU Sandwich Panel Production Line Two Tanks
  • Continuously Automatic PU Sandwich Panel Production Line Two Tanks
  • Continuously Automatic PU Sandwich Panel Production Line Two Tanks
  • Continuously Automatic PU Sandwich Panel Production Line Two Tanks
  • Continuously Automatic PU Sandwich Panel Production Line Two Tanks
Continuously Automatic PU Sandwich Panel Production Line Two Tanks
Product Details:
Place of Origin: China
Brand Name: Friendship
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: as per client requirements
Packaging Details: plastic film or wooden case
Delivery Time: 60days
Payment Terms: T/T or L/C
Supply Ability: 10 sets per months
Contact Now
Detailed Product Description
High Light:

welding production line

,

used welding equipment

Continuously Automatic PU Sandwich Panel Production Line

Two tanks





Primary technology parameters of PU sandwich panel product line



Production Material(mm):(0.25-1.0)×L, yield strength≤G300 Colored steel

Production speed:4-8 M/min

Production type: totally continuous production with PLC controlling

PU foam thickness: 25-100mm

Composite structure:position fixed by double rubber tracker

Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable

Power of production ≥ 22KW

Total power  ≥ 35 KW

Cutting: pneumatic piston driving, non-stop cutting via sliding table

Electronic controlling system: full-frequency PLC controlling system1. Two sets of un-coiler: It is Automatic and hydraulic, can be used to uncoil steel coil which is maximal 1300mm's wide, no more than 8 ton's weighty and steel coil



Specification Detail

  • Two sets of un-coiler:

It is Automatic and hydraulic, can be used to uncoil steel coil which is maximal 1300mm's wide, no more than 8 ton's weighty and steel coil

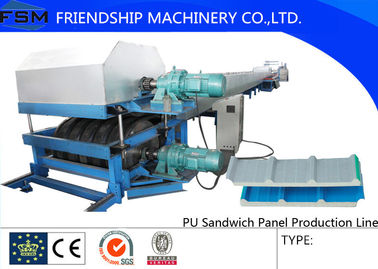

  • Three sets of roll forming machine

Function: Roll forming for the profiles of PU panel Use the welding H-beam, motor driver, sprocket chain driving
Technical data: Material of roller NO.45forged steel, with digital controlled procession,plated with hard chrome on surface of forming rollers

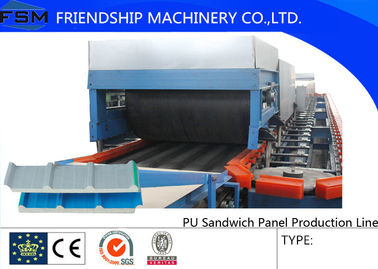

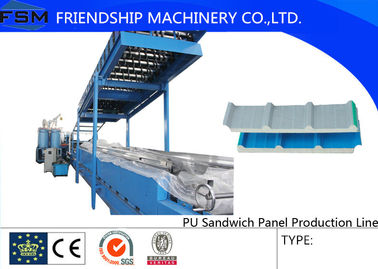

  •  PU Sandwich Foaming Line

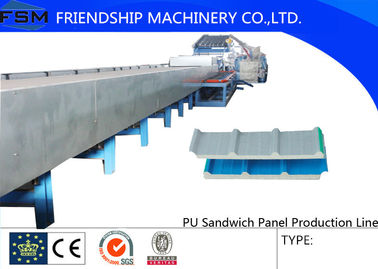

Two sets of conveyor rack: up conveyor is about 24m, down conveyor is about 30m.They lead the steel sheet from the roll forming machine to preheating room and to foaming,to cutting.
One preheating room: It is built by heat-insulation material, and it could heat up the steel sheet to 25-38 by heater.

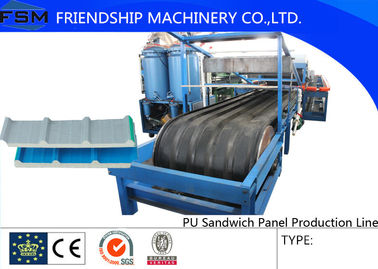

One set of PU two component Liquid mixing and injecting section for foaming : it adopt Chinese high pressure pump. It have the temperature control system and material-level monitoring system. The tank of the material is about 150L. Two tanks.

Foaming and double rubber device include motor driver system to make panel.
The width of belt board is 1250mm, the range of adjusting distance between upper and lower frame belt board: min 25mm, max 200mm. And the range of adjusting thickness of sandwich panel :30mm,50mm,100mm.(30-50 for celling , 50-100 for wall)

  • Panel automatically cutting system:

Cutting machine can move 2500mm longitudinally along product line;
fly saw of the cutting machine can move transversely 1900mm, Cutting machine moves longitudinally and transversely along the slide way.
Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable.
There is panel tight-pressing system (pneumatic) in the cutting machine;
There is location limiter to limit longitudinal and transverse motion of cutting machine.



Electric control system:
The control system adopt the touch screen , PLC , module control and transducer. The control system adopt Panasonic(JAPAN) product.
There one control platforms and electric trunk by which operating and controlling the electric motors and all motions (including hydraulic and pneumatic) in the product line.
Intercalated appropriate amount of portable switch on the product line, so manual operation get convenient.
Alarm and emergency stop system should be installed in the product line in case accident happens.



Working flow



Coiler loading → adjustable feeding guide → steel panel forming → steel sheet feeding guide → PU foaming → PU panel conveyor → non-stop cutting
