Place of Origin: | China |
Brand Name: | HUAZHONG |
Certification: | CE/ISO |
Model Number: | HZ-45 |
Minimum Order Quantity: | 1 sets |
---|---|
Price: | USD |
Packaging Details: | Film and steel |
Delivery Time: | 75 Days/Sets |
Supply Ability: | 12 sets /month |
Roller Station: | 37 Stations | Coil Width: | 229mm |
---|---|---|---|
Forming Thickness: | 0.22--0.35mm | Forming Speed: | 15-30m/min |
Power Supply: | 11KW, 380V, 50Hz | Control System: | PLC With Touch Screen |
Color: | Blue | Foam Machine: | Italy OMS & SAIP Brand |
Cutting: | Pneumatic Servo Flying Saw Cutting | Others: | Fast Conveyor Belt |
Feeding Worktable: | 6m Feeding Worktable | Uncoiler: | 2 Tons |
High Light: | shutter making machine,rolling shutter strip making machine |
37 Roller Station 11KW Roll Shutter Door Forming Machine Aluminum Material
Detailed Product Description
Technical Process
Decoiling---foam--- Heat preservation---roll forming---automatic cutting---off---discharging
Main Specifications
- Suitable raw material: Aluminum steel sheet
- Thickness of the material: 0.22-0.35mm
- Diameter of roller shaft:40mm
- Roller material : GCr15 steel, HRC58-62
- Capacity of decoiler: 2000Kgs.
- Forming speed:15-30m/min
- Drivr type:Gear box with universal joint transmission system
- Main motor power: 11KW (Depend on final design)
- Shaft material: High grade 45# steel
- Controling system: Panasonic PLC & converter
- Votage: 380V, 3 phase 50Hz (Also depond on customer's requirment)
- The ]forming steps: 37 (depend on final design)
- Machine dimension: depend on final design
Cutting
(1)Cutting motion: The main machine falying saw cutting
(2)Material of blade: CR12 with heat treatment
(3)Length measuring: Automatically
(4)Tolerance of length: 10m+/-0.5mm
(5) Cutting way: The main machine falying saw cutting
(6) Encoder:OMRON Brand
Control Box:
(1) Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC,
(4) Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
Main Components
Main Roll Forming Machine | 1 Unit |
PLC Computer Control Board | 1 Unit |
Fast conveyor belt | 1 Unit |
Decoiler / Uncoiler | 1 Unit |
Cutting To Length | 1 Unit |
Runout Table |
1 Unit |
Application
For shutter door Garage door
Our Advantage
2. Our company provides customers with 1 year warranty.
3. Any parts damaged because of quality problem will be changed for free within the first year.
4. Technical support is provided for free at the whole life of the machine.
5. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.
6. We have professional technicians for loading to guarantee the goods load into container without any damage.

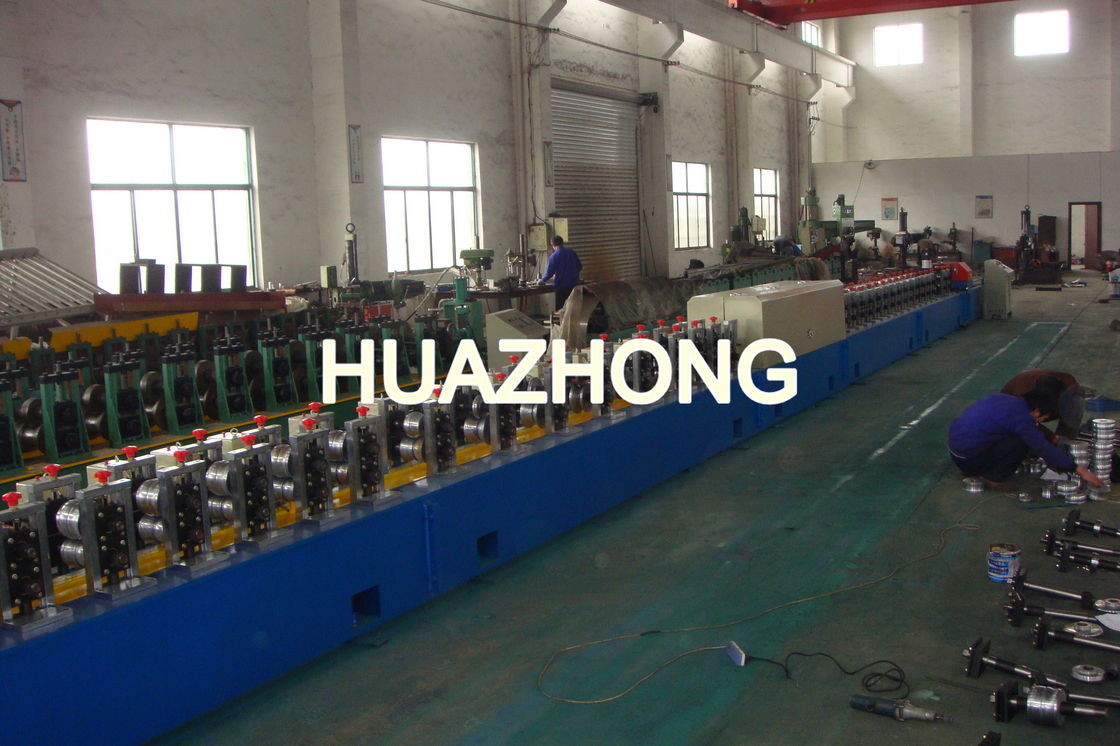

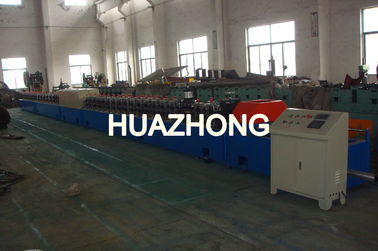

Machine Pictures
