Name: 37 Roller Station 11KW rolki migawki drzwi Maszyna do formowania aluminium Materiał
Brand: China Oil Seal Co.,Ltd
SKU: HZ-45
Availability: InStock

Dom Produkty Ostrza Piła

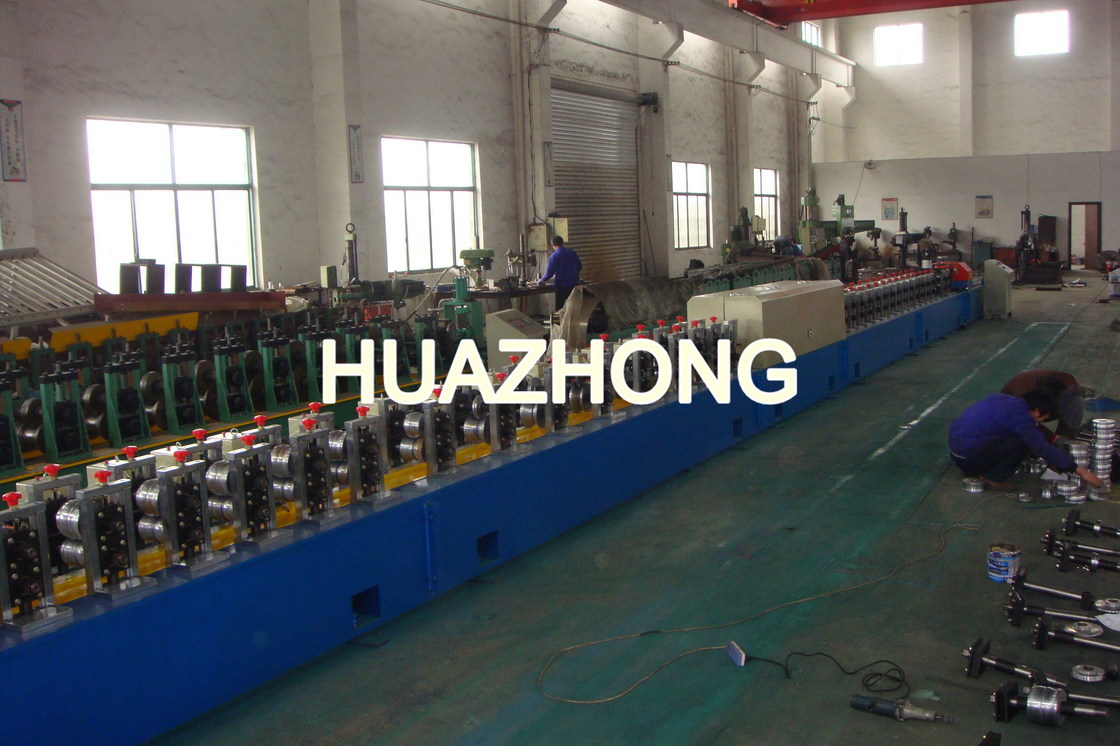

37 Roller Station 11KW rolki migawki drzwi Maszyna do formowania aluminium Materiał

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	HUAZHONG
Orzecznictwo:	CE/ISO
Model Number:	HZ-45

Zapłata:

Minimum Order Quantity:	1 sets
Cena:	USD
Packaging Details:	Film and steel
Delivery Time:	75 Days/Sets
Supply Ability:	12 sets /month

Kontakt

Szczegółowy opis produktu

Roller station:	37 stations	Coil width:	229mm
Forming thickness:	0.22--0.35mm	Forming speed:	15-30m/min
Power supply:	11KW, 380V, 50Hz	Control system:	PLC with touch screen
Color:	Blue	Foam machine:	Italy OMS & SAIP Brand
Cutting:	Pneumatic servo flying saw cutting	Others:	fast conveyor belt
Feeding Worktable:	6m Feeding Worktable	Uncoiler:	2 Tons
Podkreślić:	migawki Making Machine , rolowaną maszynę wytwarzania pasa

37 Roller Station 11KW Roll Shutter Door Forming Machine Aluminum Material Detailed Product Description Technical Process Decoiling---foam--- Heat preservation---roll forming---automatic cutting---off---discharging Main Specifications - Suitable raw material: Aluminum steel sheet - Thickness of the material: 0.22-0.35mm - Diameter of roller shaft:40mm - Roller material : GCr15 steel, HRC58-62 - Capacity of decoiler: 2000Kgs. - Forming speed:15-30m/min - Drivr type:Gear box
