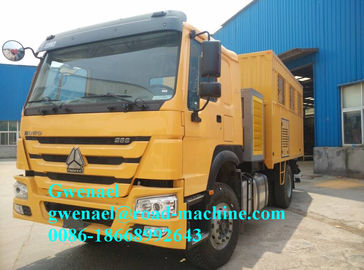

HOWO 4 x 2 Light Duty Commercial Trucks Mobile Workshop Truck

MAIN TECHNICAL DATA

Complete
Vehicle

Tare Weight

11,950 Kg

Loading Capacity

3,050 Kg

Drive Type

4X2

Tyres

6+ 1; 12.00R20 RADIAL TYRE,

Max. Speed

75 KPH

Max. Gradeability

40%

Minimum Ground Clearance

298 mm

Overall Dimensions

7540 x 2520 x 3560 mm

Wheel Base

4600 mm

Fuel Tank Capacity

400L

Engine

WD615.62; 6 Cylinder in Line, Water Cooling Diesel Engine,  Turbo Charged with Intercooler; 266hp/2200rpm;

Gearbox

HW15710  ; 10 Forwards & 2 Reverse

Colour

green

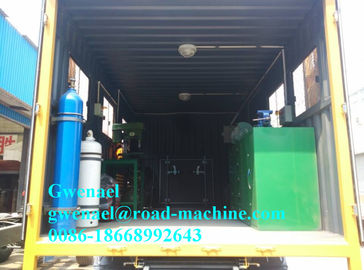

Equipments for Mobile

Workshop QDZ5190YX

Item

Description

Technical

Data

Measurement

Weight

Qty.

1

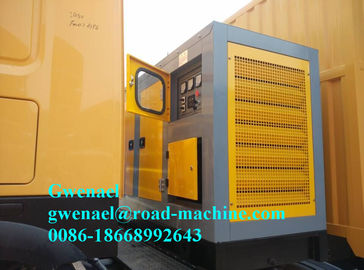

Power

 Set
(Generator)

Model: 40GF-4

2030x650x 1255(mm)

1030kg

1

Rated Power: 40KW

Rated Voltage: 400/230V

Rated Frequency: 50/60Hz

Rated Current: 72.2A

Output: 3-phase, 4-line

Diesel Engine: R4100ZD

Generator Model: TZH-40

2

Welding Set

Model: ZX7-400B

406x530x840(mm)

160kg

1

Voltage: 380V

Phase: 3

Frequency: 50/60Hz

Initial Current: 29.6A

Range: 25-250A

Input: 19.2KVA

Working Ambient: -10--+40oC

3

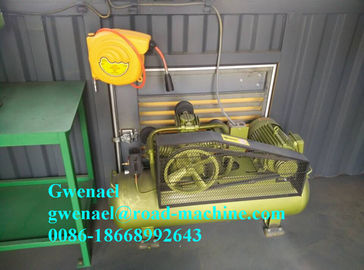

Air

Compressor

Model: AW3608

1180x410x850

(mm)

130kg

1

Voltage: 380V

Frequency: 50/60Hz

Power: 3KW

Pressure: 0.7MPa

Capacity: 0.36M3/mm

4

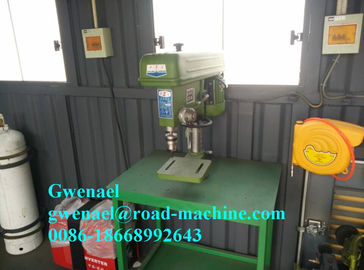

Drilling

 Machine

Model: RDM-1600BNT

760x490x260

(mm)

57kg

1

Bore Range: 3--16mm

Power: 700W

5

Vice

Size: 150mm

6

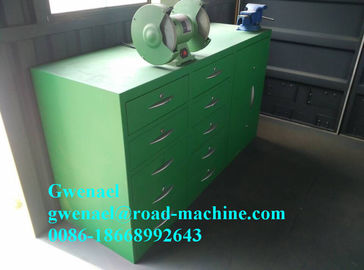

Grinding

Machine

Model: MQ3225

1

Size: 250mm

Power: 700W

7

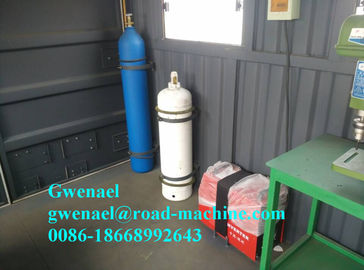

Oxygen Cylinder

Volume: 40L

1

8

Acetylene Cylinder

1

9

Gas Welding Set

1

10

Working

Bench

Steel Panel

1800x550x780 (mm)

1

11

Mobile cable

380V/220V;50m

1

12

Lifting Device

Roof Mounted, Retractable

 Cantilever, 2-Ton Chain Block

1

13

Folding chair

steel

2

14

Wall type fan

1

15

Water tank with pump

1000L,200bar

1

16

Lubrication equipment

4

No

Name

          Specification

Quantity

1

Bow saw frame

2

2

Hacksaw blade

18 tine； 32 tine

Each 1

3

Manual  oil gun

1

4

Oil pot

300cc

1

5

Hand electric drill

220V    0.6～6mm

1

6

Pipe expansion ware

1 set

7

Electrical maintenance kits

with multimeter

1 set

8

Screw tap

Coarse thread M4;M5;M6;M8;M10;M12

6/set

9

Screw tap

Fine thread      M8;M10;M12

3/set

10

Screw tap holder

180mm;280mm

each 1 set

11

Screw die

Coarse thread M4;M5;M6;M8;M10;M12

6/set

12

Screw die

Fine thread      M8;M10;M12

3/set

13

 Drill

1-10mm                       (at intervals of)0.5mm

2set

14

Drill

11-16mm

2sets

15

Drill

3.4;4.2;5.1;6.8;8.5;10.2

each 1 set

16

Steel ruler

150mm,300mm

Each 1

17

Vernier caliper

150mm,250mm

1

18

Screw thread gauge

the metric system; British system

each 1

19

Tape

2m

1

20

Round head hammer

2.5 pound

1

21

File

roundness,semi-circle,flat,square

,triangle

Each 2

22

Assorted set of files

2 sets

23

Screwdriver

cross 125mm;minus 125mm

each 1

24

Pointed plier

150mm

1

25

Steel wire clamp

200mm

1

26

Carp clamp

200mm

1

27

Oxygen watch

1

28

Acetylene watch (with backfire firearms)

1set

29

Welding wire clip

500A

1

30

White glass

10

31

Protection glasses

1

32

Steel brush

1

33

Emery cloth

46#；80#；120#

each  10

34

Metric fixed wrench

10/set

1 set

35

Metric ring wrench

10/set

1 set

36

Wrench

8";10";12"

each 1

37

Round head hammer

1.5 pound

1

38

Welding torch (with welding mouth)

1

39

Cut torch (with cut mouth)

1

40

Oxygen tube

30m

1

41

Acetylene tube

30m

1

42

Hand electric drill

220V 3-19mm

1

43

Jack

10T

1

44

Socket wrench

8mm-32mm

32/set

45

Cut clamp

medium-sized

1

46

Welding gloves

1

47

Welding rod

2.5mm;3.2mm;4mm

each 10Kg

48

Work Light

24V 60W 15m

1

49

Welding mask

1
