Place of Origin: | Jiangsu,China |
Brand Name: | FANRS MACHINERY |
Certification: | CE,ISO,SGS |
Model Number: | FC350AV |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 30 Days |
Payment Terms: | T/T(30%,70%) |
Supply Ability: | 50 Sets/Year |
Model: | FC350AV | Main Motor: | 5/3HP 2/4P |
---|---|---|---|
Main Shaft Speed: | 44/22 | Cooling Motor: | 90W |
Saw Blade: | HSS,250-375mm(Outer Diameter),∮32*12*65(Pin Hole) | System Pressure: | 25-35Mpa |
Weight: | 1400Kg | Machine Dimension(L*W*H): | 1950*1300*2000mm |
X: | X | ||
High Light: | hydraulic pipe bending machine,stainless steel pipe bender machine |

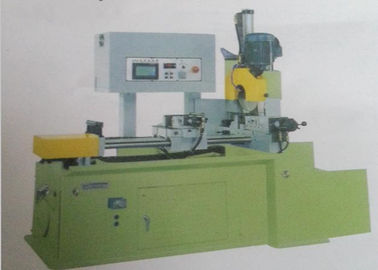

Automatic Hydraulic Pipe Cutting Machine With Saw Blade For Metal Copper Stainless Steel Pipe
Features:
① Vertically slide down into the knife, saw stably, with long tool life and high accuracy;
② By computer simulation, more suitable for heavy-duty cutting with set of gears;
③ Using logic so that control system is stable and low failure rate;
④ Coolant automatic lubricate, ensure precision cutting surface and extend tool life;
⑤ Centralized control buttons, easy to operate;
Short Introduction:
① Equipment rack made of high quality steel plate is welded to ensure that the device has sufficient strength, rigidity and stability;
② According to the actual working conditions of parts, the work environment,various parts of the device get surface treatment to make the member have sufficient strength and surface features;
③ Imported NSK bearings are used to ensure that the machine is stable and reliable;
④ Head is the integral box structure; the spindle is 3 level of gear;
⑤ Hydraulic clamping means clamping mechanism to ensure that there is sufficient clamping force;
⑥ Hydraulic components of the equipment are well-known brand products;
⑦ The main color of equipment is sky blue, while the site involved in personal body safety is with warning signs;
⑧ Control cabinet air switch uses gas switch, button, and other selector switches, relays and other major electrical components are well-known brand of Chint products, to ensure the accuracy of the control system, stability and reliability .The control circuit has overloaded protection;
⑨ Electrical components are installed in accordance with relevant state regulations; all electrical components are clearly marked. Inside the cabinet is using plastic comb Kong cabinet with trunking wiring, clear line number; control panel is clean, clear and easy to read;
Main Technical Data:
Model | FC350AV |
Main Motor | 5/3HP 2/4P |
Main Shaft Speed | 44/22 |
Cooling Motor | 90W |
Saw Blade | HSS,250-375mm(Outer diameter),∮32*12*65(Pin hole) |
System Pressure | 25-35Mpa |
Weight | 1400kg |
Machine Dimension(L*W*H) | 1950*1300*2000mm |
Configurations:
Name | Brand and Specification |
Worm and Gear | Taiwan Datong precision worm gear (worm drive is reliable, low power consumption) |
Oil Cylinder | HuaLiang hydraulic |
Motor | Wuxi taihu lake |
Button | Sendum |
Alternating Current Contactor | Chint |
Travel Switch | Chint |
Oil Pump | Yong Ling hydraulic |
Solenoid Valve | BSD hydraulic |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.
2. Q: What certificate do you have?
A: We have ISO ,SGS and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: What’s the main market of your company?
A: We have customers all over the world.
7. Q: Where is your factory located?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China,
about 2 hours to Shanghai by car.
8. Q: Can we visit your machine operating in your factory?
A: We have own workshop, and we are enthusiastically looking forward to
your visit guidance and business negotiations!
9. Q: How can we visit there?
A: We offer transportation service when you arrive in Shanghai or Jiangsu
Province, China.
