Place of Origin: | China |
Brand Name: | YEYI |
Model Number: | YEYI-HSG |
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton |
Payment Terms: | T/T |
Materials: | Quality Steel Core With Good Balance | Formula: | Good Fomulated Segment |
---|---|---|---|
Machines: | Advanced Sintering Production Line | Quality: | Different Quality Classifications For Options |
High Light: | diamond cutting blades for concrete,marble saw blade |

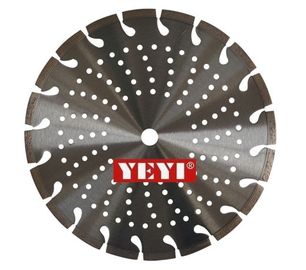

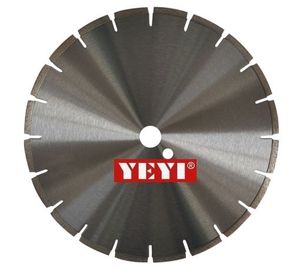

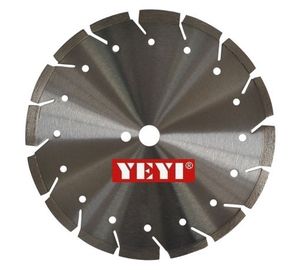

Hot Pressed Sintered Diamond Saw Blade Segmented Type For Dry Cutting 300mm
Application:
Used for fast cutting kinds of Hard, Medium Hard, Soft Stone, like Granite, Marble, Sandstone, and ceramic, concrete, asphalt, brick, etc. on the manual cutting machines.
Specifications:
Diameter(D) | Arbor (H) | Core | Segments Size(mm) | Art. | ||
Inch | mm | mm | mm | Width(T) | Height(W) | Code |
4” | 105 | 16/20/22.23 | 1.2 | 1.8 | 7/10 | SG105 |
4-3/8” | 110 | 16/20/22.23 | 1.4 | 1.9 | 7/10 | SG110 |
4-1/2” | 115 | 20/22.23 | 1.4 | 1.9 | 7/10 | SG115 |
5” | 125 | 20/22.23 | 1.4 | 1.9 | 7/10 | SG125 |
6” | 150 | 20/22.23 | 1.4 | 1.9 | 7/10 | SG150 |
7” | 180 | 15.88/22.23/25.4 | 1.6 | 2.2 | 7/10 | SG180 |
8” | 200 | 22.23/25.4/30 | 1.8 | 2.4 | 7/10 | SG200 |
9” | 230 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7/10 | SG230 |
10” | 250 | 22.23/25.4/30/50 | 2.2 | 3 | 7/10 | SG250 |
12” | 300 | 20/22.23/25.4/30/50 | 2.2 | 3.2 | 7/10 | SG300 |
14” | 350 | 22.23/25.4/30/50 | 2.2 | 3.2 | 7/10 | SG350 |
16” | 400 | 22.23/25.4/30/50 | 2.4 | 3.4 | 7/10 | SG400 |
The above specifications are only for reference, other or special specifications could be supplied upon customers requests.
Advantages:
Please offer us below information while making the inquiry:
Diameter
Inner hole
Cutting materials (granite, marble, sandstone, limestone, slate, Etc.)
Type and Shape
Order quantity
Motor Power/rotation speed
Expected delivery time
Special requirement
Contact us today to obtain the quality product from YEYI!
