Place of Origin: | Hangzhou,China |
Brand Name: | POLYTECH |
Certification: | ISO9001-2000;CE |
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | Standard exporting package |
Delivery Time: | 60 days after perpayment |
Payment Terms: | TT/LC |
Supply Ability: | 10 sets/month |
Whatsapp: | +8615068738586 |
Email: | hym@polytech.net.cn |
High Light: | double screw extruders,conical twin screw extruder |
---|

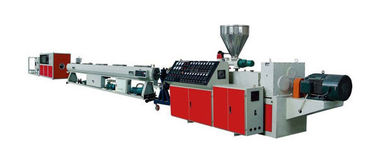

Plastic UPVC / CPVC / PVC Pipe Extrusion Line With SJZS65 / 132 Conical Twin Screw Extruder
Quick Detail:
The PVC pipe production line is mechanotronics, with the advantages of:
1. Human-machine interface
2. Easy to operation
3. High ouput.
Description:
This PVC pipe production line have following machinery:
(1) SJZS65/132 conical twin screw extruder
(2) Vacuum calibration unit
(3) Haul-off unit
(4) Cutting machine
(5) Stacker
(6) Extrusion mould
(7) Water chiller (for option)
(8) Auto feeding machine(for option)
(9) Printer(for option)
(10) High speed mixer(for option)
Competitive Advantage:
The screw,gear-reducer and mould are specially designed for high temperature,high viscosity,difficult plasticization of the PVC/CPVC melt to ensure the continuous production with stability.The whole line adopt friendly man-machine interface, intelligent control, it is convenient for use and reliable in working.
The screw extruder and the extractor adopt the imported AC frequency control device .the vacuum pump and the electric vehicle motor both adopt the superior goods .the prime mover has the traction modes such as two claw ,three claw ,four claw ,six claw and so on .The saw blade cutting type or the has performance and high production efficiency .our company can allocate the special installation for the inner wall spiral coil and core blister tube set according to the client requirements.
Specifications:
|
Screw diameter (mm)
|
Main motor power (kw)
|
Max output (kg/h)
|
Calibrating length (mm)
|
Mode of haul-off |
Cutting mould |
Pipe diameter (mm)
|
SJG-110/50 |
51/105 |
22 |
~180 |
4000 |
two rubber belt
|
saw cutting
|
Φ50-110 |
SJG-200/160 |
65/132 |
37 |
~250 |
4000 |
three rubber belt
|
saw cutting
|
Φ160-200 |
SJG-400/250 |
80/156 |
55 |
~380 |
6000 |
four rubber belt |
planet cutting
|
Φ250-400 |
SJG-630/400 |
92/188 |
90 |
~600 |
6000 |
six rubber belt |
planet cutting
|
Φ400-630 |
Applications:

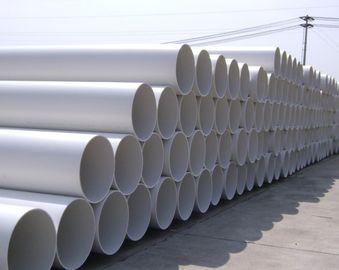

The PVC plastic pipe extrusion machine can produce UPVC/CPVC pipe which is high-intensity,high temperature-resistant,chemical-resistant,insulate and flame retardant. The pipe is the best choice for protect power cable and have good prospects.
Advantage of the PVC pipes:
1. Non-toxic: no heavy metal additives, not be covered with dirt, not be contaminated by bacterium.
2. Corrosion Resistant: resist chemical matters or electron chemical corrosion.
3. Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
4. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
5. Long Life: more than 50 years under normal conditions.
6. Recycled and Environment-friendly.
PVC pipe production line, plastic pipe extrusion machine, twin screw extruder
