Product Details:
Place of Origin: CHINA
Brand Name: ZOOY
Certification: CE
Model Number: ZO-CD75
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD20000$-30000$
Packaging Details: Standard packing
Delivery Time: 60days after get 30% down payment
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 2000Sets Per Year
Contact Now
Detailed Product Description
Feature: Economical Style Stud And Track Roll Forming Machine Control Method: PLC Control(Panasonic)
Color: Blue, Yellow,green,and Customer's Require's Warranty: Lifetime Warranty
High Light:

steel stud roll forming machine

,

roll form machines

New Technology Stud And Track Roll Forming Machine With Hydraulic Cutting, 0.55mm Thickness Sheet





Composition of machine



Roll forming main machine

1 unit

5 TONS Un-coiler

1 unit

PLC Control panel

2 unit

Hydraulic station

1 unit

cutting device

1 unit

Safety cover device

1 unit

Manual out table

2 unit





Main Specifications


Coil Material

Thickness

0.55mm

Coil width

Depend on customer’s requires

Yield Strength

G250-550Mpa

Material

Galvanized sheet, steel sheet,Aluminum sheet

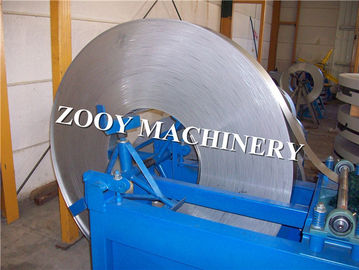

Decoiler / Uncoiler

Coil Width

Max. 600mm

I.D

410-520mm

O.D

Max. 1200mm

Capability

Max. 5tons

Decoiler type

Manual / Hydraulic/Automatic

Feeding & Leveling

Pinch feeding

1 Units ( 2 Rollers )





Cutting device

Cutting motion

Hydraulic Cutting/Manual Model Cutting/Fly Saw Cutting; post-Cutting ( cutting sheet after forming )

Cutting blades

Cr12Mov with heat treatment HRC58-62

Length Measuring

Automatic length measuring by encoder & PLC.

Cutting Tolerance

+/-1.5mm(per 3m)

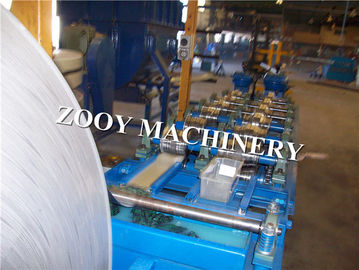

Roll Forming Machine

Forming Stations

10 Stations





Rectifying

1 unit

Roller material

GCr15 steel, heat treatment

Diameter of shaft

65mm

Shaft material

High grade 45# steel

Drive type

Chains

Forming speed

15m/min

Main power

7.5KW

Servo motor

1 Units

Driven System

Driven by Motor

Transmission by chains

Electrical control

PLC

/

Inverter

YASKAWA Brand or Custom-made

Touch screen

/

Operation type

Touch screen & Button

Hydraulic Station

Hydraulic station

Famous Chinese brand

Hydraulic power

5.5kw

Runout Table

Table type

Simple non-power type

Function

To support the finished panels

TOTAL WEIGHT



APRRO 4tons

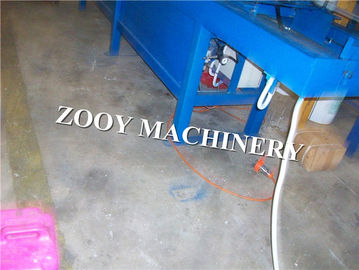

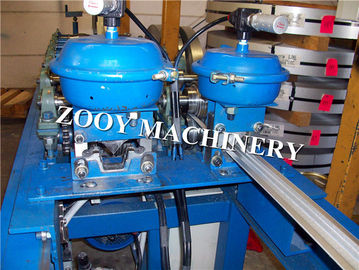

Products Photos



Aluminum sheet Metal drywall Stud And Track Roll Forming Machine With Hydraulic Cutting 0

Aluminum sheet Metal drywall Stud And Track Roll Forming Machine With Hydraulic Cutting 1



Competitive Advantage:

  • Economical
  • Simple
  • Standard speed
  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10Years Experience

.
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2:Reparis will not be performed free of change even during the guarantee period in the follow circumstances
-  damage occurs due to a natural disaster
-  malfunction occurs due to user error
-  malfunction occurs due to modifications
-  malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 60$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
