| Place of Origin: | Hangzhou |
| Brand Name: | Tideway |
| Certification: | ISO9001 EN847-1 |
| Model Number: | LC17190 |
| Minimum Order Quantity: | 100 pcs per size |
|---|---|
| Price: | USD1.3-USD3.88 |
| Packaging Details: | Plastic box |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T or L/C at sight |
| Supply Ability: | 5000pcs per day |
| High Light: | tct drill bit,core drill bit |
||
|---|---|---|---|

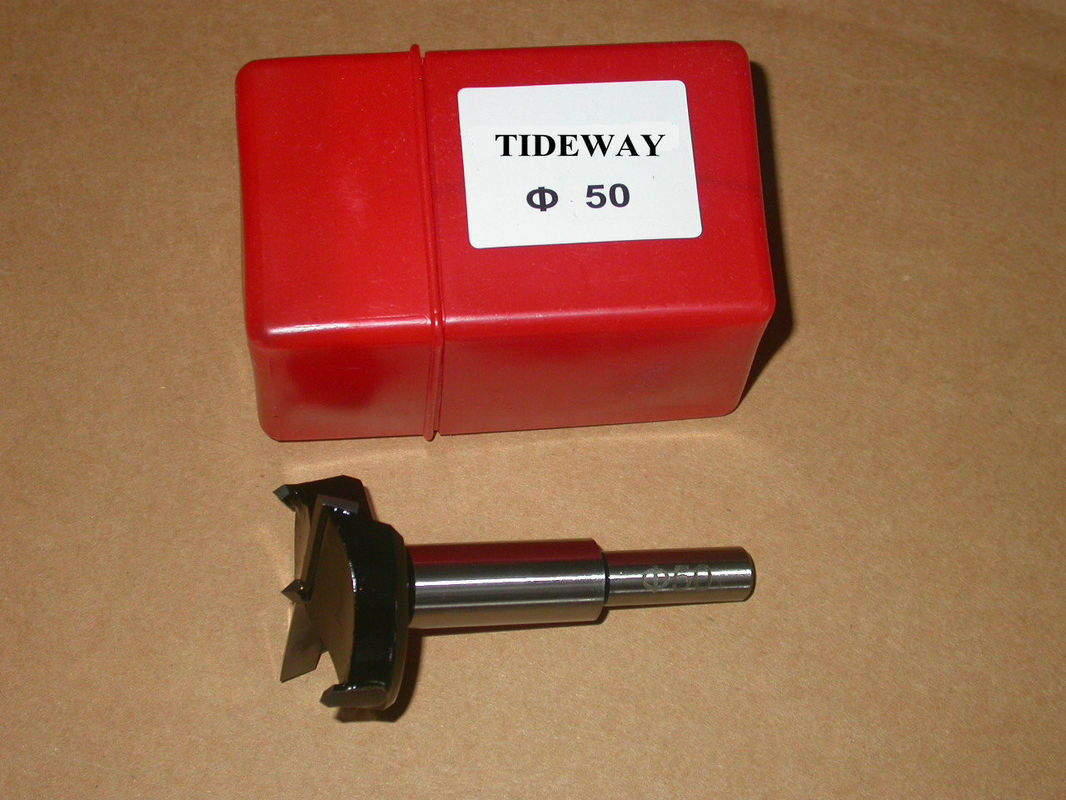

Hinge boring bit with heat treatmen steel body for making through holes
Drill bits made of carbon steel and carbide tips. Steel body with heat treatment. to make sure strong enough and no broken. Surface painted with red (LH) or black (RH) color.
We have Brad point, V point, for hinges and countersink different types.
10mm modular shank with flat. T.C.T tips with center point and M5*10 adjustable screw.
Applications:
Bits make through holes or blind holes or holes on hinges or tanks on point-to point boring machines and line machines. Fro raw and melamine panels, MDF, Multi-layer panels
Specifications:
|
Part No. |
D |
d1 |
d2 |
L |
|
|
LC171901014 |
14.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901015 |
15.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901016 |
16.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901018 |
18.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901019 |
19.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901020 |
20.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901022 |
22.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901023 |
23.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901024 |
24.0 |
8.0 |
10.0 |
85.0 |
|
|
LC171901025 |
25.0 |
10.0 |
12.0 |
85.0 |
|
|
LC171901026 |
26.0 |
10.0 |
12.0 |
85.0 |
|
|
LC171901027 |
27.0 |
10.0 |
12.0 |
85.0 |
|
|
LC171901028 |
28.0 |
10.0 |
12.0 |
85.0 |
|
|
LC171901029 |
29.0 |
10.0 |
12.0 |
85.0 |
|
|
LC171902030 |
30.0 |
10.0 |
12.0 |
87.5 |
|
|
LC171902032 |
32.0 |
10.0 |
12.0 |
87.5 |
|
|
LC171902034 |
34.0 |
10.0 |
12.0 |
87.5 |
|
|
LC171902035 |
35.0 |
10.0 |
12.0 |
87.5 |
|
|
LC171902036 |
36.0 |
10.0 |
12.0 |
87.5 |
|
|
LC171902038 |
38.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902040 |
40.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902042 |
42.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902043 |
43.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902044 |
44.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902045 |
45.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902046 |
46.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902048 |
48.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902050 |
50.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902052 |
52.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902053 |
53.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902054 |
54.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902055 |
55.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902056 |
56.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902058 |
58.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902060 |
60.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902063 |
63.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902065 |
65.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902070 |
70.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902075 |
75.0 |
10.0 |
15.0 |
87.5 |
|
|
LC171902080 |
80.0 |
10.0 |
15.0 |
87.5 |
Competitive Advantage:
1): Micro-grain carbide tips to make sure bits sharp and durable.
2): Cutting surface is finished, without burrs and skins char.
3): Package is modern, save and beautiful.
4): Thicker carbide tips can be re-ground.
5): Competitive price and short delivery time.
