| Place of Origin: | China |
| Brand Name: | Extra Sharp |
| Certification: | ISO9001-2000 |
| Model Number: | V30 |
| Type: | Segmented type |
|---|
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | $56.8 |
| Packaging Details: | Carton in international standard |
| Delivery Time: | 7-12 days based on your quantity |
| Payment Terms: | T/T, Western Union, Paypal, L/C, Alipay |
| Supply Ability: | 3000pcs/month |
| High Light: | cnc router bits,diamond cnc router bits,cnc router bits for stone |
||
|---|---|---|---|

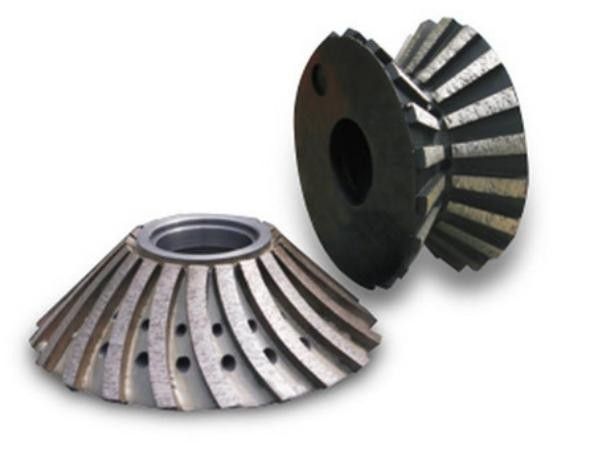

Product Name: Diamond CNC Router Bits for Stone
Diamond CNC Router Bits for Stone is a kind of diamond profiling wheel that equipped on the CNC grinding machine.There are localization bearing and steel loop on the router bits. Due to the abstruct of steel loop, the router bits can make out the required shape along the stone edge. It is widely used in processing the edge of stone vanity top, counter top, table top etc.
Using sequence: from coare grit to fine, finally polishing
Use Position 0 Segment Router Bit:Profile Wheel for rough shaping and grinding
Use Position 1 and Position 2 Sintered Router Bits: Profile Wheels for fine grinding and shaping
Use Position 3 Continuous, 4, 5, 6 & 7 Resin Router Bits: Profile Wheels for final polishing
| Positon | Usage | Type | Grit |
| 0 | Roughing | Segment | 30/40# |
| 1 | Profiling | Sintered continuous | 40/50# |
| 2 | Profiling | Sintered continuous | 80/100# |
| 3 | Pre-finishing | Sintered continuous | 170/200# |
| 4 | Finishing | Resin abrasives | 400# |
| 5 | Pre-polishing | Resin abrasives | 600# |
| 6 | Polishing | Resin abrasives | 1000# |
| 7 | Final BUFF | Resin abrasives | Optional |
Different otherprofiles and shapesare available:
