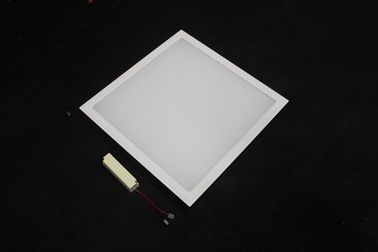

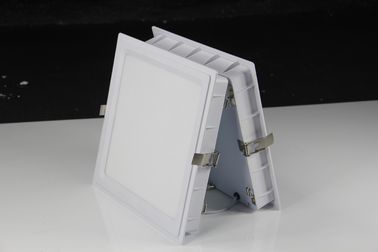

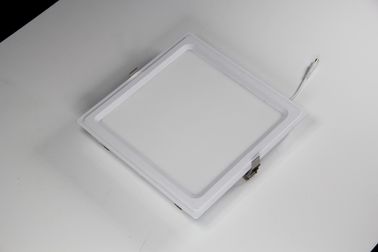

Warm White 15W SMD3014 LED Square Panel Light 300 x 300 MM 4500lm

Warm White 15W SMD3014 LED Square Panel Light 300 x 300 MM 4500lm





Quick Detail:



• Product Model: GH-PLB-3030-15W
• Luminous Way: Backlit
• Product Size: 295mm x 295mm x 42mm
• Led Brand: Epistar
• LED Source: SMD3014
• Color Temperature: Warm White / Nature White / Cold White
• Life Span: 50,000Hours
• Voltage: AC85V-265V 50/60HZ
• Warranty: 3 Years
• Protection Rate: IP50
• Certificate: CE, RoHs, TUV, GS
• Compatible: SAA, UL
• Wattage: 15W
• Diffuser: Japanese Import
• Lighting Transmittance Efficiency: Up to 93％
• Driver: Isolated Constant Current Driver (GS/SAA/CE approval)





Description:



Our Elegant and Elaborately designde Backlit LED panel light is mainly intended to reducing enrgy consumption and landscaping.High brightness, soft light and no need for guide plate is the main characteriistic of this series of backlit panel. The high Lighting Efficency can up to 100-110lm/w. Easy to install and maintain to repllace the conventional lights, like fluorescent lamp, energy saving lamps, Down lights, etc. Especially applied for Office buildings, Supermarkets, Shopping malls, Conference halls, and Hotels etc, The warranty is three years. Our products are all strictly TUV/CE/RoHS approved.





3-Years Warranty!  No trouble, No Worry!





More Details:



The luminous flux has been dramatically improved, compare to side lit LED Panel Light. It’s great to apply as commercial Lighting, and those other places need bright light.



Backlit, Japanese Imported Diffuser, integrate our engineers’ dedicated development, compose a remarkable LED Panel Lighting fixture.



Benefit from White polish plastic frame, this Backlit LED Panel Light still is easy to be suspended although it’s backlit (thickness: 42mm). Moreover, the whole panel is looked more upmarket.





Specification:



A: Technical Parameter



B: Mechanical Specifications

LED Driver	Isolated Constant Current LED Driver
Connection  to  Power	2X1.0mm 2PVC Cable
Housing  Processing	White  Paint  Coating
Material	PMMA, Plastic  housing
Cover	Frosty  Front Cover
Installation  Component Set	1. Recessed Installation, YES 2.Suspend Installation, Optional



C: Environmental

Temperature  Range  Operating	-20℃ to 40℃
Humidity  Range  Operating	20 % to 95 %
Temperature  Range Storage	-40℃ to 75℃
Humidity  Range Storage	10 % to  80 %





Dimension:









Installation:



Warning: Before installation, please make sure the power is turned off.



A. The standard False Ceiling Installation

Step1:Opening the false ceiling	Step2:Install the panel light
Step3:Connect the wire for panel



B . The embedded installation

Step1.To Saw a hole according the panel holing demension	Step2.Install the panel in the hole of ceiling
B . The embedded installation



C.The suspended installation

1.To drill the holes on the Ceiling,Fix the components with screws on the Ceiling.	2.To fix the steel rope at the panel suspended  components
3.To adjust the panel height.	C.The suspended installation





Packing Information:



Material	QTY/ CTN	Carton  Size	G.W.
Carton	1pcs	348X305X60mm	0.82kg



Material	QTY/ CTN	Carton  Size	G.W.
Carton	10pcs	630X360X334mm	8.5kg







Drop and Impact Test:



1. Each edge (as chart below) has been  tested.
2. The appearance and Performance of the LED Panel Light  has  been rechecked  after the Test.





Application:



Shopping Mall, Supermarket, Office, School, Library, Bathroom, Kitchen, Department Store, Restaurant, Cafeteria, Hospital, Laboratory, and Conference Room etc.





Warranty:



3-year warranty since the date of purchase is offered for all Backlit Panel Light.





Term of Warranty:



• Under terms of this warranty, if the product has a failure occurring under normal usage within warranty period, Ground Halo will provide free maintenance service based on the proof- documents and invoice (copy) of failure product.
• Ground Halo will not provide paid maintenance service by under conditions within warranty.
  • Failure or damage due to force majeure.
  • Failure or damage due to transport or unloading.
  • Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
  • Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
• Please deliver the failure product by original packing for maintenance service, Ground Halo will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.



Ground Halo reserves the right for final explanation of aforesaid terms.



Caution : Ground Halo will not be responsible for any other failure or damage by incorrectly usage.





Term of Trade:



1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7-20 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.
