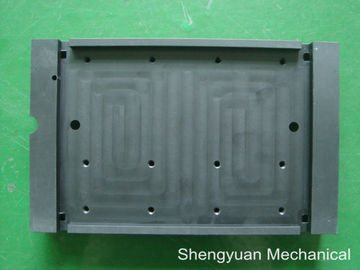

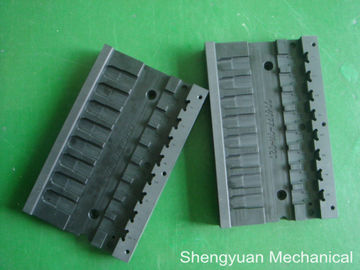

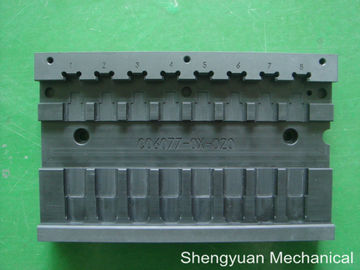

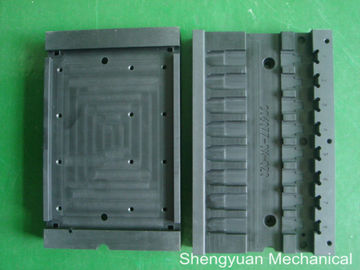

ABS-M30 CNC Precision Machining Extrusion Customized Nest Pallet

1. Extruding plastic sheet:

ABS, HIPS, PP, PE, PC, PETG, PMMA resin granules are extruded or co-extruded into thermoplastic sheet--textured, smooth, gloss or matt, fire-retarded or UV resisted

2. Vacuum forming:

After being heated, the plastic sheet is stretched onto or into a mould, and held against the mold by applying vacuum between the mould surface and the sheet to form desired shapes.

3. Cooling to keep shape:

Once formed the plastic need to cool before being released from the mould. To speed up the cooling cycle, fans are fitted and activated once the plastic part is formed.

4. Making large product:

Our machine could be restructured to make larger plastic vacuum forming plastic display, with maximun dimensions of 3000*2000*800*12mm  (L*W*H*T)

5. Trimming edges:

Extra material is firstly trimmed before more accurate processing. Sawing is often used in this stages. Polishing is made additioanlly to smoothen the edges.

6. Drilling holes:

Drilling oftens follow the trimming. Other post forming processes include decoration, printing, strengthening, reinforcing and assembly.

7. CNC Processing:

For more accurate and faster speed vacuum forming plastic display processing, CNC is often used. The machine is computer programmed to select correct cutting tools and angle to suit each area.

8. Examination and checking:

Before packaging, all our vacuum forming plastic display will be carefully checked in terms of dimensions, surface finish, stenghth, colour requirements and so on.

9. Cleansing and Packaging

All vacuum forming plastic displays are cleaned before packaging. Products are wrapped with plastic film to prevent scratches and cartoon boxs are used or other methods are applied as required.
