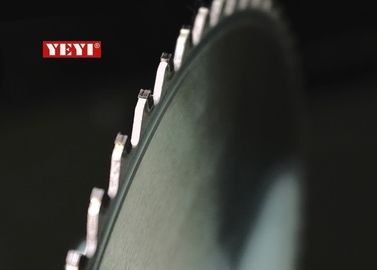

High Accuracy Metal , Steel Cutting Circular Saw Blade 120 Tooth 1.69mm

High Accuracy Metal , Steel Cutting Circular Saw Blade 120 Tooth 1.69mm

  • High Accuracy Metal , Steel Cutting Circular Saw Blade 120 Tooth 1.69mm
  • High Accuracy Metal , Steel Cutting Circular Saw Blade 120 Tooth 1.69mm
High Accuracy Metal , Steel Cutting Circular Saw Blade 120 Tooth 1.69mm
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-285x2.0x1.69x120Z
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Price: Negotiable
Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: Imported Steel Core Or Quality Materials Tips: High Quality Carbide Tips Or Imported TCT Tips
Equipments: Auto Welding And Auto Grinding Machines Quality: Extra Long Cutting Life With Good Sharpness
High Light:

hss circular saw blad

,

saw blades to cut steel


SKS Steel Cermet Tips Circular Metal Cutting Saw Blades for Steel Bar and Stainless Steel

Specifications:

High Accuracy Metal and Steel Cutting Circular Saw Blade 285mm Cold Saw Blade


285x2.0x1.69x120Z

Product details:

  • Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik.
  • Steel body uses Japanese SKS steel: SKS51 or SKS5.
  • Flattening and Surface grinding ensure the plate that is distortion free and have uniform thickness.
  • Unique design for the angle of tip and unique shape of tip for metal cutting.
  • Unique Heat treatment for the plates, which make sure the plates in good flatness.
  • Special brazing technology makes sure the strength of the teeth so as to prevent carbide breakage.
  • High dimensional accuracy makes sure the operation more smoothly.
  • Unique tension treatment could keep the most stable performance while cutting.
  • Special coating for metal cutting is applied.
  • Suitable for most of metal cutting machines in the world such as Nishijia, Amada, Anderson, Tsune, Mega, Fongho,Soco,Everising, I.T.E.C. etc.
  • Manufacturing with Japanese technology and design in Japan. Remaining cool while cutting and longer the using life. It is Throw-away type and non-resharpenable.



Diameter

Kerf

Plate

Teeth number

Teeth type

Hook Angle

Recommend RPM

Machine

Cutting

material

285mm

2.0mm

1.69mm

120

Cermet tip



180/160

NISHIJIAMA,TSUNE,

DELTA,ANDERSON,

I.T.E.C,AMADA,MEGA,

SOCO,FONGHO,

and other suitable metal cutting machine.

Steel pipe







Descriptions:
A cold saw is a sawing machine that uses a circular saw blade to cut metal. The name "cold saw" comes from the cutting process they employ. These sawing machines transfer the heat generated by cutting to the chips created by the saw blade. Therefore, the blade and material being cut remain cold, unlike an abrasive saw, which abrades the metal and creates a great deal of heat in the metal and cutting blade.

The new YEYI cermet tipped metal cutting cold saw blade leads the great job for the metal cutting work. Saw blade body use SKS5 or SKS51 steel which is imported from Japan. And with YEYI unique tension technology, the saw blade has a stable and quiet response when cutting.

Unique shape and angle of cermet tip are quite different form the HSS saw blade. Metal cutting could be much easier while using YEYI metal cutting cold saw blade.


Advantage:

  • Using Japanese SKS steel and Cermet tips (imported) to keep the quality. With our design and techniques make steel cutting easier and more clearly.
  • Unique teeth angle design makes sure every material cut clearly.
  • Special Cermet tips lead your work successful.
  • Cermets are being used instead of tungsten carbide in saws and other brazed tools due to their superior wear and corrosion properties. Titanium nitride (TiN), Titanium carbonitride (TiCN), titanium carbide (TiC) and similar can be brazed like tungsten carbide if properly prepared however they require special handling during grinding.



High Accuracy Metal , Steel Cutting Circular Saw Blade 120 Tooth 1.69mm 0



Contact us today to obtain the quality product from YEYI!
