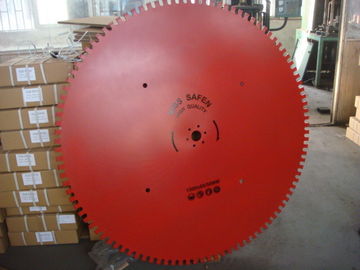

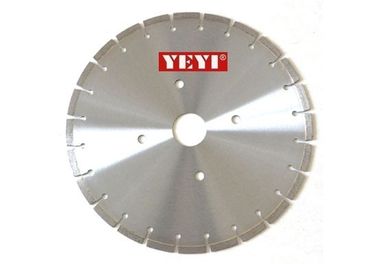

300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete

300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete

  • 300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete
  • 300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete
  • 300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete
300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-SC
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Materials: Quality Steel Core With Good Balance Segment: Well Formulated Segment For Heavy Duty
Equipment: Advanced Silver Brazing Machines Performance: Extra Long Life With Good Sharpness
High Light:

marble saw blade

,

dry cutting diamond blade


300mm Silver Brazed Diamond Saw Blade For Cutting Cured Concrete, Concrete Pavement




Specifications:


Silvered welded diamond saw blade, this type is for cutting all kinds of concrete, including reinforced concrete, with the advantages of fast cutting speed, long cutting life and high efficiency.



Diameter(mm)

Segments

Segment
No

Bore

Silent

Non Silent

Length

Width

Height

300

40

3

10/12/15

21

50/60

350

40

3.0/3.2

10/12/15

24/25

50/60

400

40

3.4/3.6

10/12/15

28

50/60

450

40

4.0

10/12/15

32

50/60

500

40

4.0

10/12/15

36

50/60

550

40

4.4

10/12/15

38

50/60





600

40

4.6

10/12/15

42

50/60

700

40

5.0

10/12/15

50

50/60

800

40

5.5

10/12/15

46

50/60

1000

40

7.0

10/12/15

70

50/60

1200

40

8.0

10/12/15

80

50/60

1600

40

10.0

10/12/15

100

50/60




The above specifications are only for reference, other or special specifications could be supplied upon customers' requests.




Please offer us below information while making the inquiry:
Diameter
Inner hole ( pin holes if available )
Silent steel core or non-silent steel core
Cutting materials (granite, marble, sandstone, limestone, slate, Etc.)
Type and Shape
Order quantity
Motor Power/rotation speed
Expected delivery time
Special requirement



Advantages:

  • Using quality steel core and good formulated segments with high quality diamonds so as to make the excellent product of Silver brazed diamond saw blade.
  • Different formula according to the different applications. The formula could be modified according to customers' requirements. We could meet every customer's requirement.
  • Professional high frequency welding machine, long time manufacturing and export experiences which could make sure the good quality consistency and achieve the positive feedback as always.


300mm Welded Silver Brazed Diamond Saw Blade / Diamond Cutting Blades For Concrete 0





Contact us today to obtain the quality product from YEYI!
