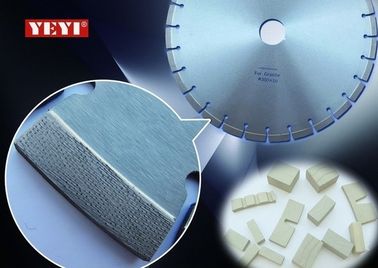

350mm Laser Welded Arix Diamond Blades / Granite Or Marble Saw Blade Longlife

350mm Laser Welded Arix Diamond Blades / Granite Or Marble Saw Blade Longlife

  • 350mm Laser Welded Arix Diamond Blades  / Granite Or Marble Saw Blade Longlife
  • 350mm Laser Welded Arix Diamond Blades  / Granite Or Marble Saw Blade Longlife
350mm Laser Welded Arix Diamond Blades  / Granite Or Marble Saw Blade Longlife
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-SA
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: Quality Steel Core With Good Balance Segment: Well Formulated Arix Segment For Different Application
Machines: Advanced Silver Brazing Machines And Laser Welded Machines Quality: Extra Long Life With Good Sharpness
High Light:

diamond cutting blades for concrete

,

marble saw blade


350mm Silver Brazed / Laser Welded Arix Diamond Saw Blade For Marble, Granite, Concrete


Specifications:


Silvered welded diamond saw blade or laser welded diamond saw blade is available with this type- Arix diamond saw blade. The segment has completely even distribution of diamond particles within the bond. With feature of cutting efficiency 50& higher and cutting life 30%-100% more than normal blades. It is suitable for cutting granite, marble, concrete, brick, asphalt etc.



iameter

Segment Dimension

Segment No.

Bore

Silent

Non Silent

L

W

H

250

40

3.0

10/12/15

17

50/60

300

40

3.0

10/12/15/20

21

50/60

350

40

3.0/3.2

10/12/15/20

24/25

50/60

400

40

3.4/3.6

10/12/15/20

28

50/60

450

40

3.8/4.0

10/12/15/20

32

50/60

500

40

4.0

10/12/15/20

36

50/60

600

40

4.6

10/12/15/20

42

50/60

700

40

5.0

10/12/15/20

50

50/60

800

40

5.5

10/12/15/20

46

50/60



The above specification is only for Reference, other or special specification or shapes can be ordered by customers.





Advantages:

  • Using quality steel core and good formulated arix segments with high quality diamonds so as to make the excellent product of Silver brazed diamond saw blade.
  • Different formula according to the different applications. The formula could be modified according to customers' requirements. We could meet every customer's requirement.
  • Professional high frequency welding machine, long time manufacturing and export experiences which could make sure the good quality consistency and achieve the positive feedback as always.



Please try best to offer below information when you are placing order:
Diam.: (inch or mm)
Bore size: (inch or mm)
Size and position of the fitting holes(it is better to send a drawing)
Segment No. (teeth/blade)
Segment Size(LxWxH, and thickness of steel core if possible)
Segment Formation(sandwich type or multiple line type)
Cutting target (for granite, sandstone or other hard stone including quartz)
Order quantity(how many pcs of blade or how many sets of segment)
Machine power(motor/rotation speed if possible)
Feeding speed(meter/minute)
Expected cutting depth(mm, at every turn, to and from)
Cooling system(water cooling or oil cooling, is it including coolant, the rate, liter/m )
Expected delivery time
