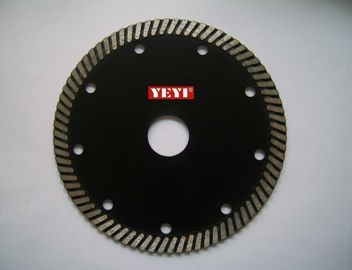

4” Diamond Saw Blades , Asphalt Or Ceramic Tile Saw Blade For Dry Or Wet Cutting

4” Diamond Saw Blades , Asphalt Or Ceramic Tile Saw Blade For Dry Or Wet Cutting

  • 4” Diamond Saw Blades , Asphalt Or Ceramic Tile Saw Blade For Dry Or Wet Cutting
  • 4” Diamond Saw Blades , Asphalt Or Ceramic Tile Saw Blade For Dry Or Wet Cutting
4” Diamond Saw Blades , Asphalt Or Ceramic Tile Saw Blade For Dry Or Wet Cutting
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-STB
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Plate: Quality Steel Core With Good Flatness Formulation: High Quality Fomulated Segment
Machines: Advanced Hot Pressed Sintering Production Line Performance: Extra Long Cutting Life With Good Sharpness
High Light:

diamond cutting blades for concrete

,

marble saw blade



105mm Turbo Diamond Saw Blades , Sintered Hot Pressed, Narrow Teeth 4" For Dry Or Wet Cutting





Application:



The diamond saw blades are produced by Hot pressed sintered craftsman which provide the diamond blades in similar performance as laser weld diamond blades, but keep the price lower than laser weld blades. The narrow turbo teeth design are suitable for wide applications such as for cutting kinds of Hard, Medium Hard, Soft Stone, like Granite, Marble, Sandstone, and ceramic, concrete, asphalt, brick, etc. on the manual cutting machines.





Specifications:



Diameter(D)

Arbor (H)

Core

Segments Size(mm)

Art.
Code

Inch

mm

mm

mm

Width(T)

Height(W)

4”

105

16/20/22.23

1.2

2.2

7.5

STB105

4-3/8”

110

16/20/22.23

1.4

2.2

7.5

STB110

4-1/2”

115

20/22.23

1.4

2.4

7.5

STB115

5”

125

20/22.23

1.4

2.4

7.5

STB125

6”

150

20/22.23

1.4

2.4

7.5

STB150

7”

180

16/22.23/25.4/30

1.6

2.6

8.0

STB180

8”

200

22.23/25.4/30

1.8

2.8

8.0

STB200

9”

230

22.23/25.4/30/50

1.8

3.1

8.0

STB230



The above specifications are only for reference, other or special specifications could be supplied upon customers requests.





Advantages:

  • Using quality steel core and good formulated segments with high quality diamonds so as to make the excellent product of diamond saw blade hot pressed sintered.
  • Different formula according to the different applications. The formula could be modified according to customers' requirements. We could meet every customer's requirement.
  • And professional production lines, long time manufacturing and export experiences which could make sure the good quality consistency and achieve the positive feedback as always.



Please offer us below information while making the inquiry:

Diameter

Inner hole

Cutting materials (granite, marble, sandstone, limestone, slate, Etc.)

Type and Shape

Order quantity

Motor Power/rotation speed

Expected delivery time

Special requirement
