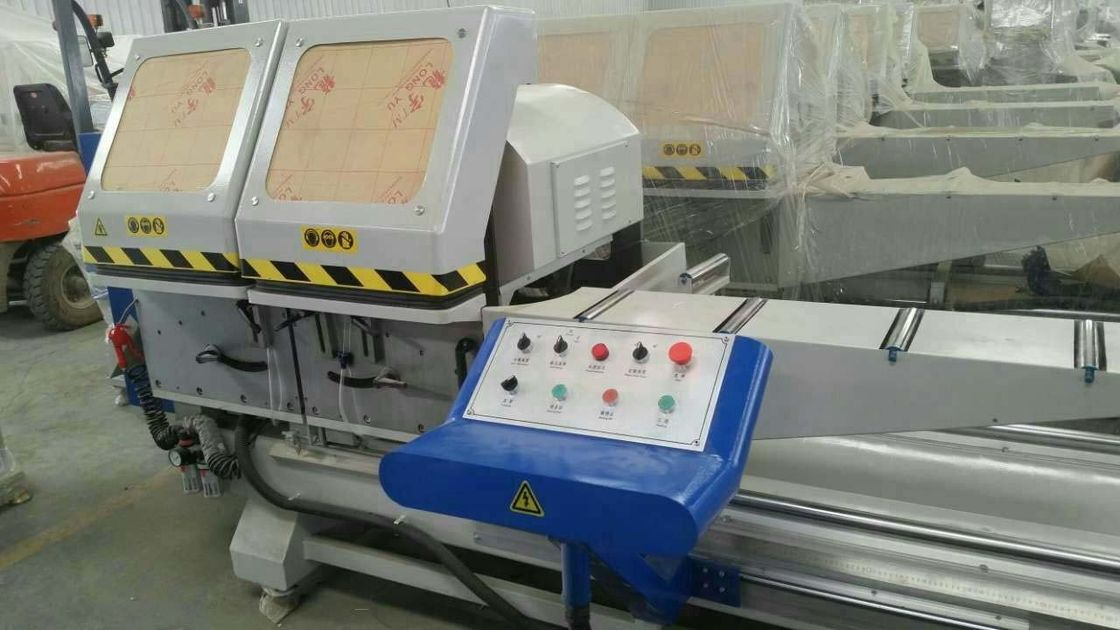

MJ4200A double head precision Aluminum cutting saw

MJ4200A double head precision Aluminum cutting saw

  • MJ4200A double head precision Aluminum cutting saw
MJ4200A double head precision Aluminum cutting saw
Product Details:
Place of Origin: China
Brand Name: Easwon
Certification: ISO, CE
Model Number: MJ3700A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000 - USD9000
Packaging Details: Plastic film
Delivery Time: within 15 days
Payment Terms: T/T or L/C
Supply Ability: 500 set per month
Contact Now
Detailed Product Description

MJ4200A Aluminum saw is used in aluminum door&window and curtain wall profile cutting.

Power supply

380V 50Hz

Cutting motor power

2 x 2.2Kw

Motor rotary speed

2800r/min

Operation air pressure

0.6-0.8Mpa

Cutting length

Max 4200mm  Min 370mm



Cutting width

Max135mm

Cutting height

90º: Max 300mm  45º:Max 200mm

Cutting angle

90º  45º

Cutting speed steeples speed regulation

0-3m/min

Blade specification(mm)

Φ300xΦ30

Repeated locating length tolerance

±0.2mm

Cutting profile surface plane

≤0.10mm

Cutting angle tolerance

±5'

Cutting profile surface roughness

Ra12.5µm

Contour dimension

5500mm*1750mm*1950mm

Weight

1800kgs

MJ4200A double head precision Aluminum cutting saw 0
