Aluminum window door profile cutting saw machine A8-500 Parker machine

Aluminum window door profile cutting saw machine A8-500 Parker machine

  • Aluminum window door profile cutting saw machine A8-500 Parker machine
Aluminum window door profile cutting saw machine A8-500 Parker machine
Product Details:
Place of Origin: China
Brand Name: Parker
Certification: CE
Model Number: A8-500
Power: 380v 50hz
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 30000-40000 USD/Set FOB Qingdao port.China
Packaging Details: As order
Delivery Time: 20 work days after received the deposit.
Payment Terms: 30% of the total value and rest before shipment by T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
High Light:

Aluminum cutting saw

,

Aluminum cutter

,

Aluminum window door

Aluminum cutting saw

Tri-Axis Arbitrary Angle Cutting Saw With CNC

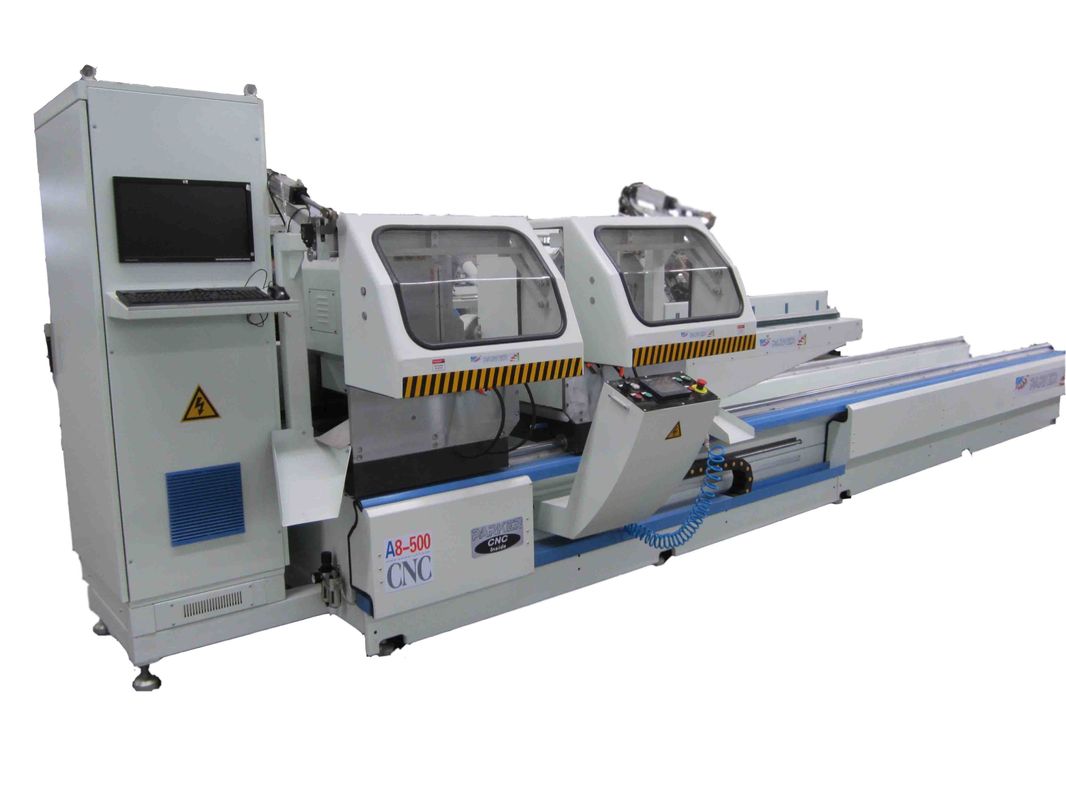

Aluminum window door profile cutting saw machine A8-500 Parker machine 0
Model: A8-500
Features:
The machine is the most advanced double-head cutting saw.
The control system adopts the new closed-loop system, and can ensure the accuracy of repeat length.
The imported blade with high precision makes the cutting surface smoothly.
The servomotor drives the speed reducer to adjust the cutting angle in 45°-157.5°.
The imported control system can ensure the cutting quality.
Several profile processing dimensions can be input one time and make continuous cutting.
The imported service motor with high moving speed and high precision should drive the sawing head.
The machine has label printing function (option).
Parameter:
Voltage: 380V 50HZ
Power: 6.8KW
Air pressure: 0.5-0.8MPa
Blade specification: (standard size)
Cutter moving speed: 0-2m/min
Cutting length: Max5000mm Min480 at 90°
Max5000mm Min(double height of profile) at 45°
Cutting width: 120mm
Cutting height: 230mm
Cutting angle: 45°-157.5°
Repeat locating length error: mm
Surface plainness:
Overall dimension: 6800mmX1500mmX2040mm
