OR wall / Ceiling PU Sandwich Panel Machine Production Line with Aluminum Foil Facing

Product Details:

Place of Origin:	CHINA
Brand Name:	ZOOY
Certification:	CE
Model Number:	ZO-PU600

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD150000$-400000$
Packaging Details:	Standard packing
Delivery Time:	100days after get 30% down payment
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	10Sets Per Year

Contact Now

Detailed Product Description

Feature:

High Press Foaming For PU Sandwich

Control Method:

PLC Control(Panasonic)

Color:

Blue, Yellow,green,and Customer's Require's

Warranty:

Lifetime Warranty

High Light:

polyurethane sandwich panel making line

polyurethane sandwich panel production line

PU Foaming For Ceiling Sandwich Panels Production Line with Aluminum Foil Facing

Description

1.This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof(OR wall/ceiling) forming panel as the top face layer, aluminum foil as the bottom face layer. The sandwich panel is 18 mm in thickness, max1000mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.

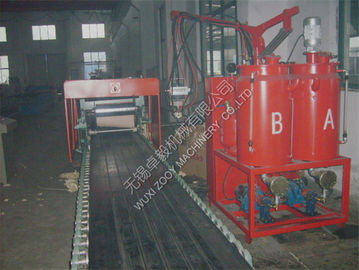

2.The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.

Main Specifications

Coil Material	Thickness	0.3-0.8mm
	Coil width	Depend on customer’s requires
	Yield Strength	250-550Mpa
	Material	Color steel, galvanized steel
Decoiler / Uncoiler	Coil Width	Max. 1250mm
	I.D	510-610mm
	O.D	Max. 1300mm
	Capability	Max. 8Tons
	Decoiler type	Manual / Hydraulic/Automatic
Feeding & guiding	Pinch feeding	1 Units ( 2 Rollers )
Feeding & guiding	guiding	2 Rollers
Cutting device	Cutting motion	Cutting adopts tracking cutting
		and saw (or fly saw) of the cutting machine can move transversely 1500mm, Cutting machine moves longitudinally and transversely along the slide way
		Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable
	Length Measuring	BY encoder
	Cutting Tolerance	+/-1.5mm(per 3m)
PU sandwich panel	thickness	15-40
	Standard Sandwich Panel Size	max1100mm x 4000mm(Width x Length)
	Linear Speed of production	2-5 m/min
	Reciprocating times of injection head per minute	<60
	Control system	Production type: totally continuous production with PLC controlling
Roll Forming Machine	Forming Stations	ABOUT 18-24steps

	Roller material	45# steel, heat treatment
	Diameter of shaft	75mm
	Shaft material	High grade 45# steel
	Drive type	By chains
	Forming speed	0-15m/min
	Main power	7.5kw


Electrical control	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	MCGS Brand or Custom-made
	Operation type	Touch screen & Button
Runout Table	Table type	Simple non-power type
Runout Table	Function	To support the finished panels
TOTAL WEIGHT		APRRO 20TONS

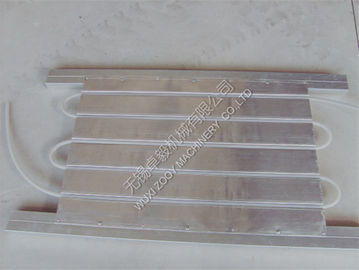

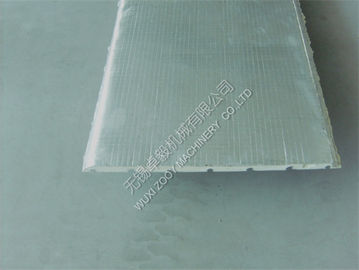

The type pursues board (basis on customer's requires to design)

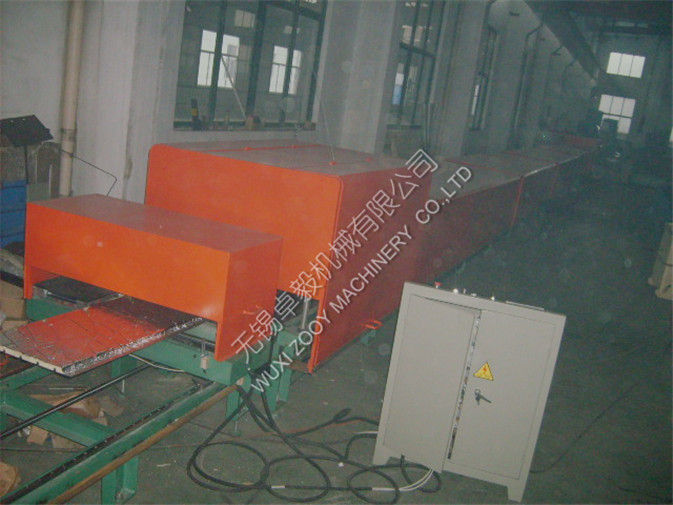

OR wall / Ceiling PU Sandwich Panel Machine Production Line with Aluminum Foil Facing 0

OR wall / Ceiling PU Sandwich Panel Machine Production Line with Aluminum Foil Facing 1

Competitive Advantage:

Economical
Simple
Standard speed
High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10Years Experience

.
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2:Reparis will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 60$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
