Place of Origin: | china |
Model Number: | LJZ2-500x4200 |
Category: | Plastic Cutting Machinery |
---|
Delivery Time: | within 2-3 working days(depends on your quantity) |
---|
aluminum cutting machine/aluminum saw machine/aluminum cutting saw/aluminum window machine/aluminium cutting machine/aluminium saw machine/aluminium cutting saw/aluminium window machine/aluminium door machine

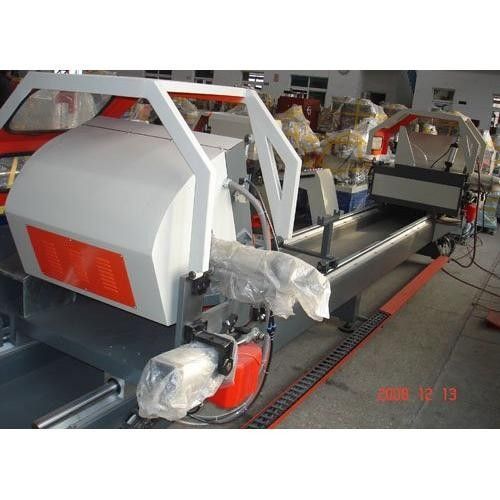

LJZ2-500x4200 CNC Double-head Precision Cutting Saw for Aluminum Profile
1. Features
Used in aluminum door & window and curtain wall profile cutting. Feature Adopt NC technology, and automatically finish various sizes of profile cutting. Right saw head motion adopts high-lead ball screw motion, with high transmission accuracy, accurate locating, and balanced work. Serial optimized length date can be input at the same time to realize continuous cutting. Mishap auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically realize cutting angle transformation between 22.5°(standby),45°and 90°profiles. Imported carbide saw blade gives high quality of cutting section and high endurance. Self-opening protective cover makes cutting safe and convenient.
2. Technical Data
Air Pressure |
05.-0.8Mpa |
Air Consumption |
200L/min |
Power |
380/50Hz |
Motor |
2.2Kwx2 |
Cutting Angle |
90 45 65.5 (22.5) (degree) |
Saw Blade Standard |
500x4.4x30xZ120 |
Cutting Length |
400x4200mm |
3. Related Machines
LJZ2-500x4200 Integrated NC Double-head Precision Cutting Saw for Aluminum Profile
LJZ2-500x4200 CNC Double-head Precision Cutting Saw for Aluminum Profile
LJZ2-500x4200 Digital-display Double-head Precision Cutting Saw for Aluminum Profile
LJZ2-500x4200 Double-head Precision Cutting Saw for Aluminum Profile
SJ06-3700 Double-head Precision Cutting Saw for Aluminum Profile
4. Remarks
Pkg: Each PC In Wooden Cases
Terms: Freight On Board (FOBQingdao)
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected while delivering the goods
Our Trademark: SUNNY
5. Contact Person
Snowden Chen
Mobile: 0086-13583172732
Contact Person: Mr.
Fax: 86-198-9093-3709
