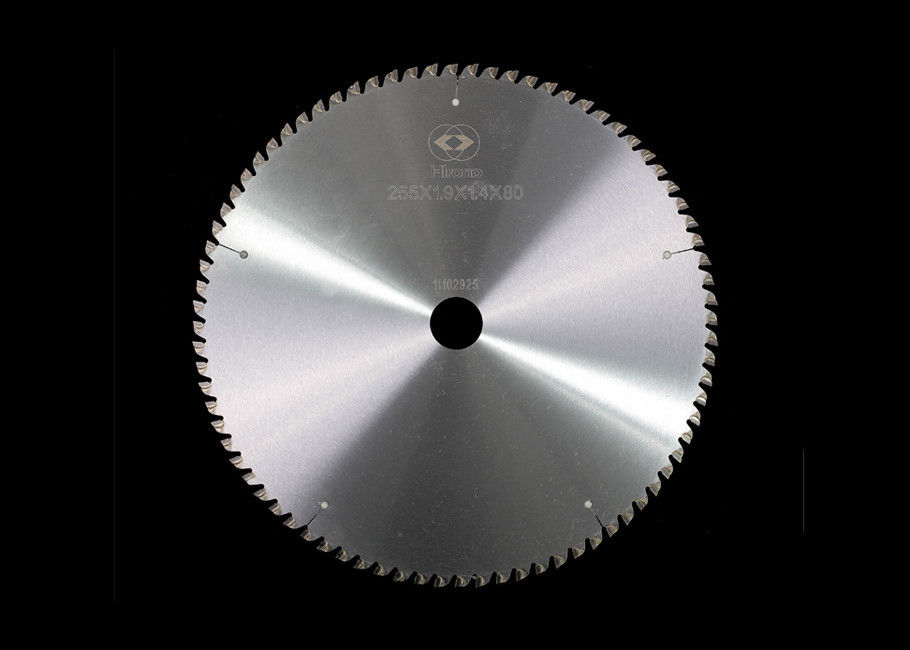

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm

  • Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm
  • Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm
  • Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm
Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm
Product Details:
Place of Origin: China
Brand Name: Hirono
Certification: ISO9001
Model Number: 255x1.9x1.4x80z
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Case packing
Delivery Time: 25-30 days
Payment Terms: T/T,D/P at sight
Supply Ability: Monthly 1000PCS
Contact Now
Detailed Product Description
High Light:

power saw blade

,

aluminum saw blade

 Cermet tip Metal Cutting Saw Blades54z 60z Japanese Tip cold saw blade 250mm 285mm







Quick detail:



1.     Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik.

2.     Body use Japanese SKS steel. SKS51 or SKS5.

3.     Cooling copper design. Keep cool during cutting.

4.     Flattening and Surface grinding ensure the plates that are distoriton free and have uniform thickness.

5.     Unique angle of tip and unique shape of tip. Design for Stainless edge pipe cutting.

6.     Unique Heat treatment for the plates, make sure the plates are very flat.

7.     Special brazing technology make sure the strength of the teeth to preven carbide breakage.

8.     High dimensional accuracy make sure the working smooth.

9.     Unique tension treating. Keep the most stable while cutting.

10.     Special coating for stainless steel cutting.

11.   Suitable for most metal cutting machine in the world. Nishijia, Amada, Anderson, Tsune, Mega,       Fongho,Soco,Everising, I.T.E.C. and so on.

12.     Japanese technology. Design in japan.

13.     Remain cool while cutting. Enlarge the using life.







Diameter

Kerf

Plate

Teeth number

Teeth type

Hook Angle

Recommend RPM

Machine

Cutting

material

255mm

1.9mm

1.4mm

80

Cermet tip



below 300

NISHIJIAMA,TSUNE,

DELTA,ANDERSON,

I.T.E.C,AMADA,MEGA,

SOCO,FONGHO,

Webo,and other suitable metal cutting machine.

stainless edge pipe






Description:


A cold saw is a sawing machine that uses a circular saw blade to cut metal. The name "cold saw" comes from the cutting process they employ. These sawing machines transfer the heat generated by cutting to the chips created by the saw blade. Therefore, the blade and material being cut remain cold, unlike an abrasive saw, which abrades the metal and creates a great deal of heat in the metal and cutting blade.



The new Hirono’s cermet tipped metal cutting cold sawblde lead a great job for the metal cutting work. Sawblade’s body is using SKS5 or SKS51 which the steel is imported from Japan. And within hirono’s unique tension technology, the sawblade has a stable and quiet response when it’s cutting.


Unique shape and angle of cermet tip is quite different form HSS sawbalde. Metal cutting will be much easier while using Hirono’s metal cutting clod sawblade.




The tip is using Cermet tip which is imported from Japan. What is cermet tip?



A cermet is a composite material composed of ceramic (cer) and metallic (met) materials.A cermet is ideally designed to have the optimal properties of both aceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. The metal is used as a binder for an oxide, boride, or carbide. Generally, the metallic elements used are nickel, molybdenum, and cobalt. Depending on the physical structure of the material, cermets can also be metal matrix composites, but cermets are usually less than 20% metal by volume.



Cold saw using the cermet tip in order to keeping the stability of metal cutting and keep the saw blade cool all the time. So it can increases using life.
We using imported brazing machine for brazing the tip and using the Japanese grinding machine for grinding the sawblade.


During 3 year’s improving, our cold sawblade has a great success on metal cutting filed. In china and out of china, our customer’s give us the best response.



Application:


  1. Suitable cutting machine: NISHIJIMA, TSUNE, AMADA, ANDERSON, I.T.E.C, FONGHO, SOCO,EVERSIING, MEGA, DELTA Webo and other metal cutting machines.
  2. Cutting material: stainless edge pipe.




Advantage:



  •   We’re using Japanese saw blade steel. Body’s quality is much better than other company.
  •   In order to keep the sawblade working stable,every sawblade has tension treating by hand.
  •   Imported cermet tip (sandivk and Mitsubishi) keeps the best cutting result.
  •   All the welding machines and grinding machines are imported from japan.
  •   Japanese design. In order to keep the best cutting result, our Japanese technics are   modifying the design when getting customers’ feedback. So we’re the top designer of sawblade.




Cutting material recommend:



Diameter Teeth Recommend diameter of material
255mm 80 25~45mm





Machines recommend:

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 0

Diameter Machine manufacturer Machine model
255mm Noritake NCS-2/50
255mm Kasto/Wanger Wac-70



*The list haven't show the all machines. All the metal cutting cold saw machines can use our saw blade.



Benefit:

Different from band saw and metal saw (hss). The cold saw blade will give you lots of benefit.

One cold saw mahine can replaces three band saws or metal sawmachines.

1. Less sapce

2. Less labor

3. Less environmental pollution

4. Less captial outlay

5. lower cost per cut

6. Saving the cutting time.





Please click here to download our new catalogue





Technique:



Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 1

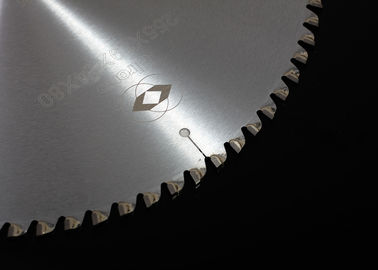

Cermet tip. speical angle and shape.

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 2

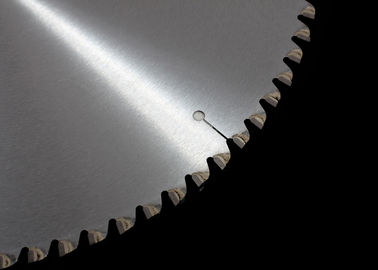

Body using SKS steel (imported from Japan). The high grade body steel makes the work more easier and more stable.

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 3


 We use high grade Cermet tips , With the most advance grinding machine (Enokida and vollmer),
our sawblade has the most stable quality.



Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 4

Special tension technic and special coating technic (Ti coating make sure metal-cutting more stable and ensure the using life.


Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 5


Cooling copper design. While cuting. The plate will remain cool.


Cutting Material:

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 6

Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 7


Cermet tip Metal Cutting Saw Blades / 54z 60z Japanese Tip cold saw blade 250mm 285mm 8

Stainless edge pipe.
