915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw

915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw

  • 915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw
  • 915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw
  • 915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw
915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw
Product Details:
Place of Origin: Hangzhou,China
Brand Name: POLYTECH
Certification: ISO9001-2000;CE
Model Number: SJZS80/156
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: US $ 100,000 - 200,000 / Set
Packaging Details: Standard exporting package
Delivery Time: 60 days after perpayment
Payment Terms: TT/LC
Supply Ability: 10 sets/month
Whatsapp: +8615068738586
Email: hym@polytech.net.cn
Contact Now
Detailed Product Description
Material: Pvc/wpc Width: 915mm,1220mm
Capacity: 350-400kg/h
High Light:

wpc profile extrusion line

,

wpc production line



915mm , 1220mm WPC Machine /  wall panel , window profile making machine 55kw , 37 kw



915mm , 1220mm WPC Machine / wall panel , window profile making machine 55kw , 37 kw 0

Description:

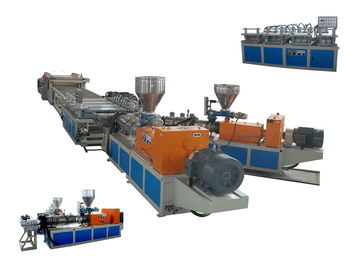

This WPC machine for WPC foam board is consisted by following parts:

1. Two conical screw extruders keep a high output for the co-extrusion, when you want to make one layer board, only stop one extruder

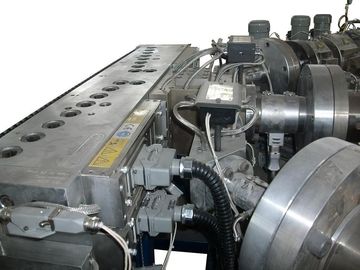

2. T-die and distributor make the processing evenly (thickness is adjustable)

3. Shaping mould keep a good shape and high precision of the finished WPC foamed board

4. Cooling trial with two side blade cutting for the thinner sheet

5. Laminating device

6. Haul-off device with normal 8 rubber roller groups and two side saw cutting for thicker board

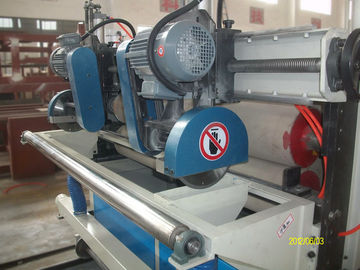

7. The auto saw cutter the dust collection device

8. Stacker





Quick Detail:



The WPC machine for WPC foam board is mechanotronics, with the advantages of:

1) high production efficiency;

2) reasonable structure compact;

3) convenient operation and maintenance

4) long use life etc.



Competitive Advantage:



We focus on the co-extrusion technology which keep high output and overcome many operating problems for the one layer board;

The co-extrusion product will be more cost saving and good surface looking;

Our customer can have more choises to make the board accroding their market, one layer or two layer;

The most important is that our machine line can  stablely and continously produce.







Specifications:



Main extruder

SJZS-80/ SJZS-65

SJZS-92/ SJZS-80

Width of finished product

915mm,1220mm

915mm,1220mm

Thickness  of finished product

(5-25)mm

(5-25)mm

Max output

400kg/h

800kg/h

Drive motor

55kw,37 kw

110kw,55kw



Applications:



The WPC foam board machine is mainly used in the production of wood-plastic foamed board.

The wood-plastic foamed board has the advantages of both wood and plastic. It not only has the excellent appearance of the natural wood, but also overcomes the disadvantages of the natural wood. With the advantages of anti-corrosion, moisture-proof, anti-moth-eaten, dimensional-steady, no cracking, etc, it is much harder than the pure plastic products and has the similar process-ability as the wood. It can be cut, paint, bonded and fixed with nails or bolts. As the wood-plastic board material has the advantages of low price and excellent performance, its application field is getting larger and larger and it now can take place more and more traditional materials. The wood-plastic foamed board is mainly used in wall panel, decorating plate, construction formwork, kitchen cabinet, cloth cabinet, bath room cabinet, fence, stair handrail, etc.



WPC machine, WPC foam board machine , pvc foam board machine , wpc foam machine
