Carbon steel and carbide tips TCT drill bits for multiple drilling machines

Product Details:

Place of Origin:	Hangzhou
Brand Name:	Tideway
Certification:	ISO9001 EN847-1
Model Number:	LC1803

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs per size
Price:	USD1.3-USD3.88
Packaging Details:	Plastic box
Delivery Time:	35 working days
Payment Terms:	T/T or L/C at sight
Supply Ability:	5000pcs per day

Contact Now

Detailed Product Description

High Light:

tct drill bit

drill bit set

Carbon steel and carbide tips TCT drill bits for multiple drilling machines

Drill bits made of carbon steel and carbide tips. Steel body with heat treatment. to make sure strong enough and no broken. Surface painted with red (LH) or black (RH) color.

We have Brad point, V point, for hinges and countersink different types.

10mm modular shank with flat. T.C.T tips with center point and M5*10 adjustable screw.

Applications:

Bits make through holes or blind holes or holes on hinges or tanks on point-to point boring machines and line machines. Fro raw and melamine panels, MDF, Multi-layer panels

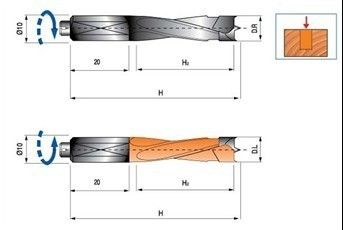

Specifications:

Part No.	D.R	D.L	H2	H
LC180357004	4R	4L	27	57
LC180357005	5R	5L	27	57
LC180370005	5R	5L	35	70
LC180357006	6R	6L	27	57
LC180370006	6R	6L	35	70
LC180357007	7R	7L	27	57
LC180370007	7R	7L	35	70
LC180357008	8R	8L	27	57
LC180370008	8R	8L	35	70
LC180357009	9R	9L	27	57
LC180370009	9R	9L	35	70
LC180357010	10R	10L	27	57
LC180370010	10R	10L	35	70
LC180357012	12R	12L	27	57
LC180370012	12R	12L	35	70
LC180357014	14R	14L	27	57
LC180370014	14R	14L	35	70
LC180357015	15R	15L	27	57
LC180370015	15R	15L	35	70
LC180357016	16R	16L	27	57
LC180370016	16R	16L	35	70
