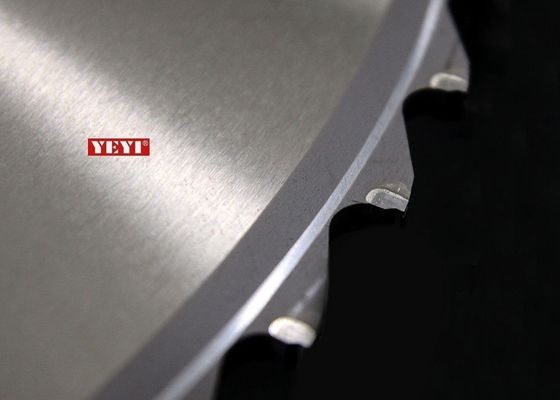

Cermet Tip Cold Saw Blades For Cutting Stainless Edge Pipe 255mm x 80Z

Cermet Tip Cold Saw Blades For Cutting Stainless Edge Pipe 255mm x 80Z

  • Cermet Tip Cold Saw Blades For Cutting Stainless Edge Pipe  255mm x 80Z
  • Cermet Tip Cold Saw Blades For Cutting Stainless Edge Pipe  255mm x 80Z
Cermet Tip Cold Saw Blades For Cutting Stainless Edge Pipe  255mm x 80Z
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-255x1.9x1.4x80Z
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Price: Negotiable
Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: Imported Steel Core With Good Balance Tips: High Quality Carbide Tips Or Imported TCT Tips
Equipments: Auto Welding And Auto Grinding Machines Quality: Extra Long Cutting Life With Good Sharpness
High Light:

hss circular saw blad

,

saw blades to cut steel

Unique Teeth Angle Metal Cutting Saw Blades / Cermet Tip Cold Saw Blades 255mm x 80Z


Specifications:
255x1.9x1.4x80Z



Cold Saw Blades For Cutting Stainless Edge Pipe  255mm x 80Z Cermet Tips

Product details:

  • Edge (tip) material: Cermet. Cermet tip imported from Japan, we’re using Mitsubishi or Sanvik.
  • Steel body uses Japanese SKS steel: SKS51 or SKS5.
  • Flattening and Surface grinding ensure the plate that is distortion free and have uniform thickness.
  • Unique design for the angle of tip and unique shape of tip for metal cutting.
  • Unique Heat treatment for the plates, which make sure the plates in good flatness.
  • Special brazing technology makes sure the strength of the teeth so as to prevent carbide breakage.
  • High dimensional accuracy makes sure the operation more smoothly.
  • Unique tension treatment could keep the most stable performance while cutting.
  • Special coating for metal cutting is applied.
  • Suitable for most of metal cutting machines in the world such as Nishijia, Amada, Anderson, Tsune, Mega, Fongho,Soco,Everising, I.T.E.C. etc.
  • Manufacturing with Japanese technology and design in Japan. Remaining cool while cutting and longer the using life. It is Throw-away type and non-resharpenable.



Diameter

Kerf

Plate

Teeth number

Teeth type

Hook Angle

Recommend RPM

Machine

Cutting
material

255mm

1.9mm

1.4mm

80

Cermet tip



below 300

NISHIJIAMA,TSUNE,
DELTA,ANDERSON,
I.T.E.C,AMADA,MEGA,
SOCO,FONGHO,
Webo,and other suitable metal cutting machine.

stainless edge pipe





The tip using is Cermet tip which is imported from Japan. What is cermet tip?

The cermet is a composite material composed of ceramic (cer) and metallic (met) materials. The cermet is ideally designed to have the optimal properties of both ceramic, such as high temperature resistance and hardness, and those of a metal, such as the ability to undergo plastic deformation. The metal is used as a binder for an oxide, boride, or carbide. Generally, the metallic elements used are nickel, molybdenum, and cobalt. Depending on the physical structure of the material, cermets can also be metal matrix composites, but cermets are usually less than 20% metal by volume.

Cold saw using the cermet tip in order to keep the stability of metal cutting and keep the saw blade cool all the time. So it can increase the cuttinglife.

We use imported brazing machine for brazing the tip and use the Japanese grinding machine for grinding the saw blade teeth.


During 2 year’s improving, our cold sawblade has a great success on metal cutting filed. In china and out of



china, our customer’s give us the best response.





Application:
Suitable cutting machine: NISHIJIMA, TSUNE, AMADA, ANDERSON, I.T.E.C, FONGHO, SOCO,EVERSIING, MEGA, DELTA Webo and other metal cutting machines.

Cutting materials: steel bar or pipe.





About the tips:



Special tip for metal cutting. Special shape of tip. Using our special grinding machine to grind.
All YEYI metal cutting saw blade's tips are imported from Japan ( Mitsubishi)



Cermet Tip Cold Saw Blades For Cutting Stainless Edge Pipe  255mm x 80Z 0



Contact us today to obtain the quality product from YEYI!
