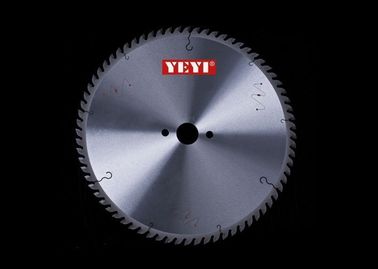

Multifunctional TCT Circular Saw Blade For Cutting Laminates ,120 Tooth Saw Blade

Multifunctional TCT Circular Saw Blade For Cutting Laminates ,120 Tooth Saw Blade

  • Multifunctional TCT Circular Saw Blade For Cutting Laminates ,120 Tooth Saw Blade
  • Multifunctional TCT Circular Saw Blade For Cutting Laminates ,120 Tooth Saw Blade
Multifunctional TCT Circular Saw Blade For Cutting Laminates ,120 Tooth Saw Blade
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-300x3.2x72T-TCT
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiable
Packaging Details: Plastic pipe+ plastic bag+ paper box+ carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: Imported Steel Plate With Good Balance Tips: HIgh Quality Carbide Tips Or Imported Ceratizit Tips
Equipment: Auto Welding And Auto Grinding Machines Quality: Longer Cutting Life In Good Sharpness
High Light:

industrial circular saw blades

,

tct metal cutting blade

OEM SKS Japanese Steel TCT Circular Saw Blade For Cut Wood Based Panel 300 x 3.2 x 2.2 x 30 x 72T In Satin Finish



Application:

  • Suitable for cutting plastic material in general, such as plexiglass (FRP) and PVC etc...Also suitable for ripping & cross cutting laminates & Bi-laminates, veneered or plastic-coated board.
  • Bore: Available all size and kind upon request, such as 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm, etc.
  • Teeth: Teeth number could be adjusted upon request.
  • Hook angle: could be adjusted upon requests





Specifications:



300x3.2x2.2x30x72T



Other sizes are as below:



CODE Diamete(mm) KeFf,B/b (mm) Teeth Number
YYP 125 125 2.6/1.6 30,32
YYP 150 150 2.6/1.6 36,40,42
YYP 165 165 2.6/1.6 40,46
YYP 180 180 2.8/1.8 44,50
YYP 200 200 2.8/1.8 56,60
YYP 216 216 2.8/1.8 56,60
YYP 230 230 2.8/1.8 60,64,80
YYP 250 250 3.0/2.0 72,80,96,100
YYP 270 270 3.0/2.0 48,50,60,64,72,80
YYP 300 300 3.2/2.2 72,84,96,100,120
YYP 350 350 3.2/2.2 84,96,100,108,120
YYP 400 400 3.5/2.5 96,108,112,120
YYP 420 420 3.5/2.5 96,108,112,120
YYP 450 450 3.5/2.5 108,120,140
YYP 500 500 3.5/2.5 120,132,140
YYP 550 550 3.8/2.8 132,144,160,180
YYP 600 600 4.0/3.0 140,160,180
YYP 650 650 4.0/3.0 140,160,180
YYP 700 700 4.2/3.2 140,160,180
YYP 750 750 4.6/3.6 140,160,180
REMARK Other specifications & sizes are available upon request







Advantages:

  • Using SKS Japanese steel (imported), Carbide tips and grinded by ENOKIDA machine (imported from Japan) and Vollmer (imported from Germany)
  • Accuracy cutting capability helps you saving more materials and more time.
  • T.C.T saw blade can cut wood based panel and other panels.
  • Long-time operation could be OK if you use our T.C.T saw blade.
  • Slot filled with the resin materials can reduce the heat while cutting and make sure more stable performance.



Multifunctional TCT Circular Saw Blade For Cutting Laminates ,120 Tooth Saw Blade 0



Contact us today to obtain the quality product from YEYI!
