Rubber Belt Transmission For 1000mm PU Sandwich Panel Machine, PLC Control Automatic Foaming

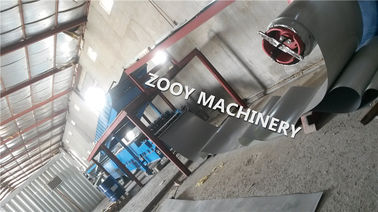

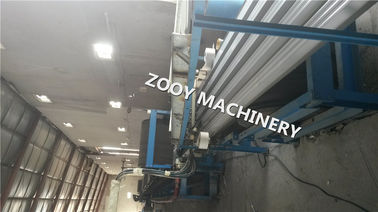

• This production line is a kind of specialized equipment for producing sandwich panel with the middle layer of anti-combustion polyurethane and with roof forming panel as the top face layer, aluminum foil as the bottom face layer. The sandwich panel is between 25 and 200mm in thickness, 1000mm in width, length determined by the customer. The sandwich panel is mainly used as keeping warm for wall and roof . Different insulating panels with other soft facing layers could also be produced on the line.
• The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into shape,after all for above actions are completed, by an automatic tracking cutting mechanism, cut into segments according to the preset length.

Coil Material

Thickness

0.3-0.8mm

Coil width

Depend on customer’s requires

Yield Strength

250-550Mpa

Material

Color steel,  galvanized steel

Decoiler / Uncoiler

Coil Width

Max. 1250mm

I.D

510-610mm

O.D

Max. 1300mm

Capability

Max. 8Tons

Decoiler type

Manual / Hydraulic/Automatic

Feeding & guiding

Pinch feeding

1 Units ( 2 Rollers )

guiding

2 Rollers

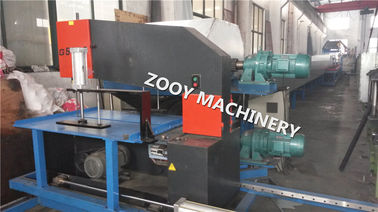

Cutting device

Cutting motion

Cutting adopts tracking cutting

 and saw (or fly saw) of the cutting machine can move transversely 1500mm, Cutting machine moves longitudinally and transversely along the slide way

Cutting machine adopts one-side blade band saw manner, cutting and revolving after cutting. The cutting saw can revolve, so cutting in two directions is realizable

Length Measuring

 BY encoder

Cutting Tolerance

+/-1.5mm(per 3m)

PU sandwich panel

thickness

25-100mm

Standard Sandwich Panel Size

max1100mm x 4000mm(Width x Length)

Linear Speed of production

2-5 m/min

Reciprocating times of injection head per minute

<60

Control system

Production type: totally continuous production with PLC controlling

Roll Forming Machine

Forming Stations

ABOUT 18-24steps

Roller material

45# steel, heat treatment

Diameter of shaft

75mm

Shaft material

High grade 45# steel

Drive type

By chains

Forming speed

0-15m/min

Main power

7.5kw

Electrical control

PLC

PANASONIC Brand or Custom-made

Inverter

YASKAWA Brand or Custom-made

Touch screen

MCGS Brand or Custom-made

Operation type

Touch screen & Button

Runout Table

Table type

Simple non-power type

Function

To support the finished panels

TOTAL WEIGHT

APRRO 20TONS
