Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm

Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm

  • Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm
  • Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm
  • Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm
Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm
Product Details:
Place of Origin: China
Brand Name: YEYI
Model Number: YEYI-SG
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Contact Now
Detailed Product Description
Steel Core: High Quality Steel Core With Good Balance Segments: Good Fomulated Cold Pressed Segment
Equipments: Advanced Cold Pressed Sintering Machine Performance: Extra Long Cutting Life With Good Sharpness
High Light:

diamond cutting blades for concrete

,

dry cutting diamond blade



Sintered Cold Pressed Segmented Diamond Saw Blades 105mm / 4" Dry Cutting





Application:

Used for fast cutting kinds of Hard, Medium Hard, Soft Stone, like Granite, Marble, Sandstone, and ceramic, concrete, asphalt, brick, etc. on the manual cutting machines.





Specifications:



Diameter(D) Arbor (H) Core Segments Size(mm)  Art.
Inch  mm  mm  mm  Width(T)  Height(W)  Code
4”  105 16/20/22.23  1.2 1.8 7/10 SG105
4-3/8”  110 16/20/22.23  1.4 1.9 7/10 SG110
4-1/2”  115 20/22.23  1.4 1.9 7/10 SG115
5”  125 20/22.23  1.4 1.9 7/10 SG125
6”  150 20/22.23  1.4 1.9 7/10 SG150
7”  180 15.88/22.23/25.4  1.6 2.2 7/10 SG180
8”  200 22.23/25.4/30  1.8 2.4 7/10 SG200
9”  230 22.23/25.4/30/50  1.8 2.4 7/10 SG230
10”  250 22.23/25.4/30/50  2.2 3 7/10 SG250
12”  300 20/22.23/25.4/30/50  2.2 3.2 7/10 SG300
14”  350 22.23/25.4/30/50  2.2 3.2 7/10 SG350
16”  400 22.23/25.4/30/50  2.4 3.4 7/10 SG400



The above specifications are only for reference, other or special specifications could be supplied upon customers requests.





Advantages:

  • Using quality steel core and good formulated segments with high quality diamonds so as to make the excellent product of diamond saw blade cold pressed sintered.
  • Different formula according to the different applications. The formula could be modified according to customers' requirements. We could meet every customer's requirement.
  • And professional production lines, long time manufacturing and export experiences which could make sure the good quality consistency and achieve the positive feedback as always.
  • Hot pressed sintered type is also available.



Please offer us below information while making the inquiry:

Diameter

Inner hole

Cutting materials (granite, marble, sandstone, limestone, slate, Etc.)

Type and Shape

Order quantity

Motor Power/rotation speed

Expected delivery time

Special requirement

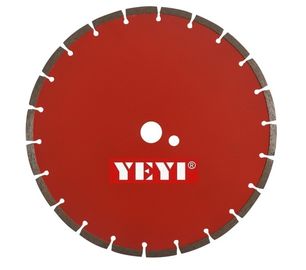

Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm 0



Contact us today to obtain the quality product from YEYI!

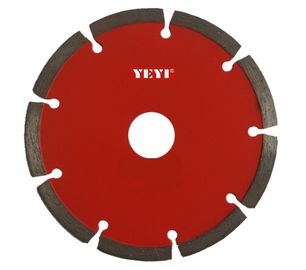

Cold Pressed Segmented Diamond Saw Blades For Dry Cutting Dia 105mm 180mm 230mm 1
